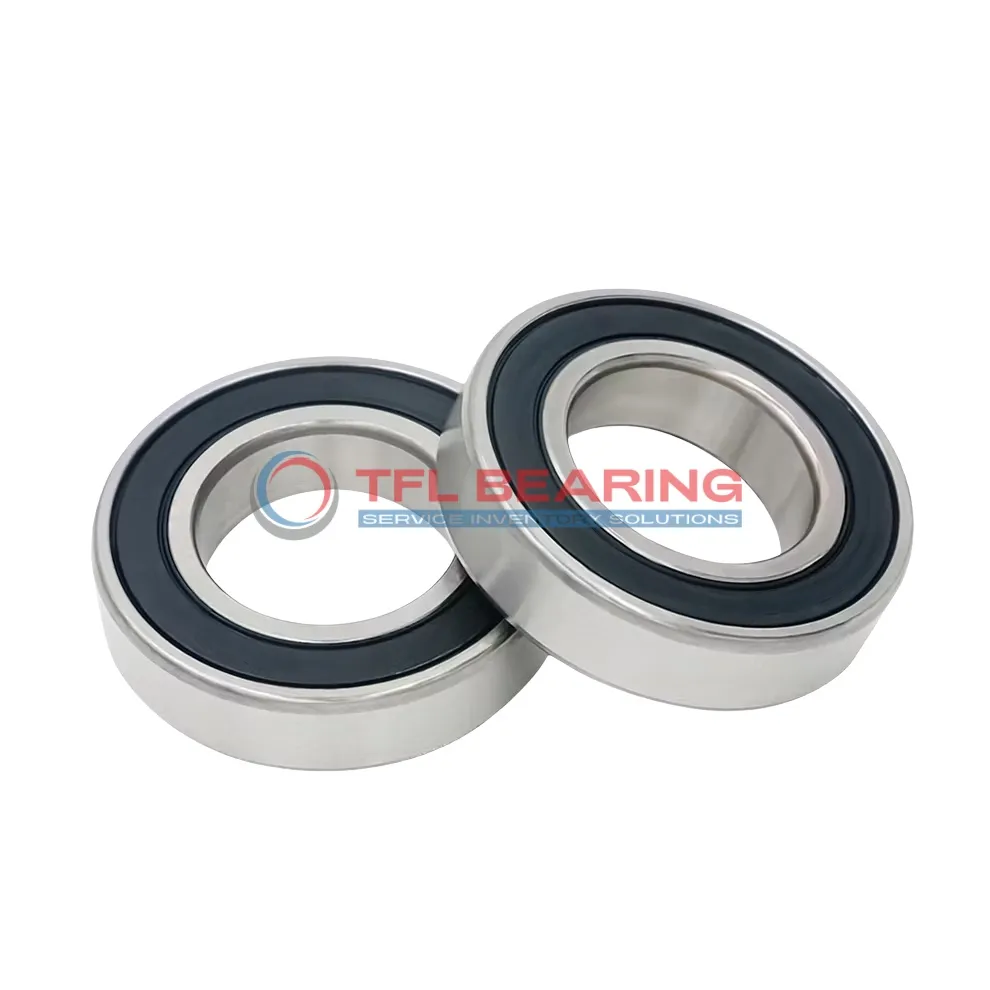

Single Row Deep Groove Ball Bearings 6012-RS1

Single Row Deep Groove Ball Bearings 6012-RS1

The 6012-RS1 is a single-row deep groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6902 lbf and runs smoothly at speeds up to 4300 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The stainless steel cage adds durability, while the P6 tolerance ensures precise performance.

This bearing is compatible with SKF models, offering a reliable alternative. It suits applications like electric motors or pumps where radial loads are common.

Weighing 0.42kg, it’s robust yet easy to handle. It operates in temperatures from -30°C to 120°C and meets RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6012-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6902 lbf
  • Static Radial Load 5216 lbf
  • Max Speed 4300 rpm
  • Weight 0.42 kg
  • price（$） 11.808
Single Row Deep Groove Ball Bearings 6012-RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6012-RS1 Bearing

6012-RS1 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6902 lbf.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

The stainless steel cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a maximum speed of 4,300 rpm, it delivers reliable performance for industrial applications.

6012-RS1 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.

Application

Where Is 6012-RS1 Bearing Used?
In industrial settings, 6012-RS1 Bearing is commonly found in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures it handles radial loads effectively in demanding environments.

Automotive applications like alternators and water pumps benefit from 6012-RS1 Bearing’s reliable performance. Its metric sizing makes it a straightforward replacement in many European and Asian vehicle models.

For household appliances, 6012-RS1 Bearing works well in washing machines and fans, providing quiet operation. The sealed design helps maintain smooth performance even with frequent use.
