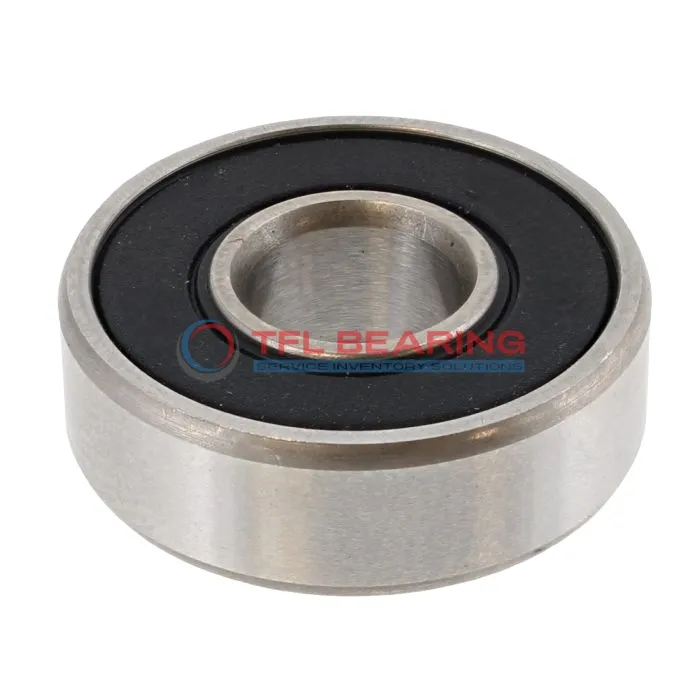

Single Row Deep Groove Ball Bearings 6011-2RS1/W64F

Single Row Deep Groove Ball Bearings 6011-2RS1/W64F

The 6011-2RS1/W64F is a single-row deep groove ball bearing with a 55mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6362 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design and solid oil lubrication ensure low maintenance, while the chrome steel cage offers reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 373g, it’s a sturdy yet manageable option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6011-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6362 lbf
  • Static Radial Load 4766 lbf
  • Max Speed 7500 rpm
  • Weight 373 g
  • price（$） 25.146
Single Row Deep Groove Ball Bearings 6011-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does 6011-2RS1/W64F Bearing Reduce Friction?

6011-2RS1/W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction enhances durability while maintaining consistent performance under radial loads.
The bearing operates efficiently within a temperature range of -30°C to 120°C, suitable for various environments.
With a dynamic radial load capacity of 6362 lbf, it handles demanding applications with ease.

Application

Industrial Uses of 6011-2RS1/W64F Bearing
This sealed deep groove bearing is commonly used in industrial fans and pumps, where its solid oil lubrication ensures long service life even in dusty conditions. The chrome steel construction provides reliable performance in continuous operation.

Where Is 6011-2RS1/W64F Bearing Used?
You’ll often find this bearing in automotive alternators and electric motors, thanks to its ability to handle moderate radial loads smoothly. The ABEC 1 tolerance makes it suitable for applications where precise rotation isn’t critical.

Built for Versatility: 6011-2RS1/W64F Bearing
In household appliances like washing machines, this bearing’s sealed design protects against water and detergent ingress. The wide temperature range allows it to perform reliably in both hot and cold environments.

Automotive vs Industrial: Applications of 6011-2RS1/W64F Bearing
While commonly used in vehicle components, this bearing also shines in conveyor systems where its radial load capacity is advantageous. The metric sizing ensures easy replacement across different equipment types.

What Makes 6011-2RS1/W64F Bearing a Practical Choice?
Its combination of sealed protection and solid oil lubrication makes it ideal for food processing equipment where contamination must be avoided. The 18mm width provides a compact solution for space-constrained designs.
