Single Row Deep Groove Ball Bearings 6010/W64

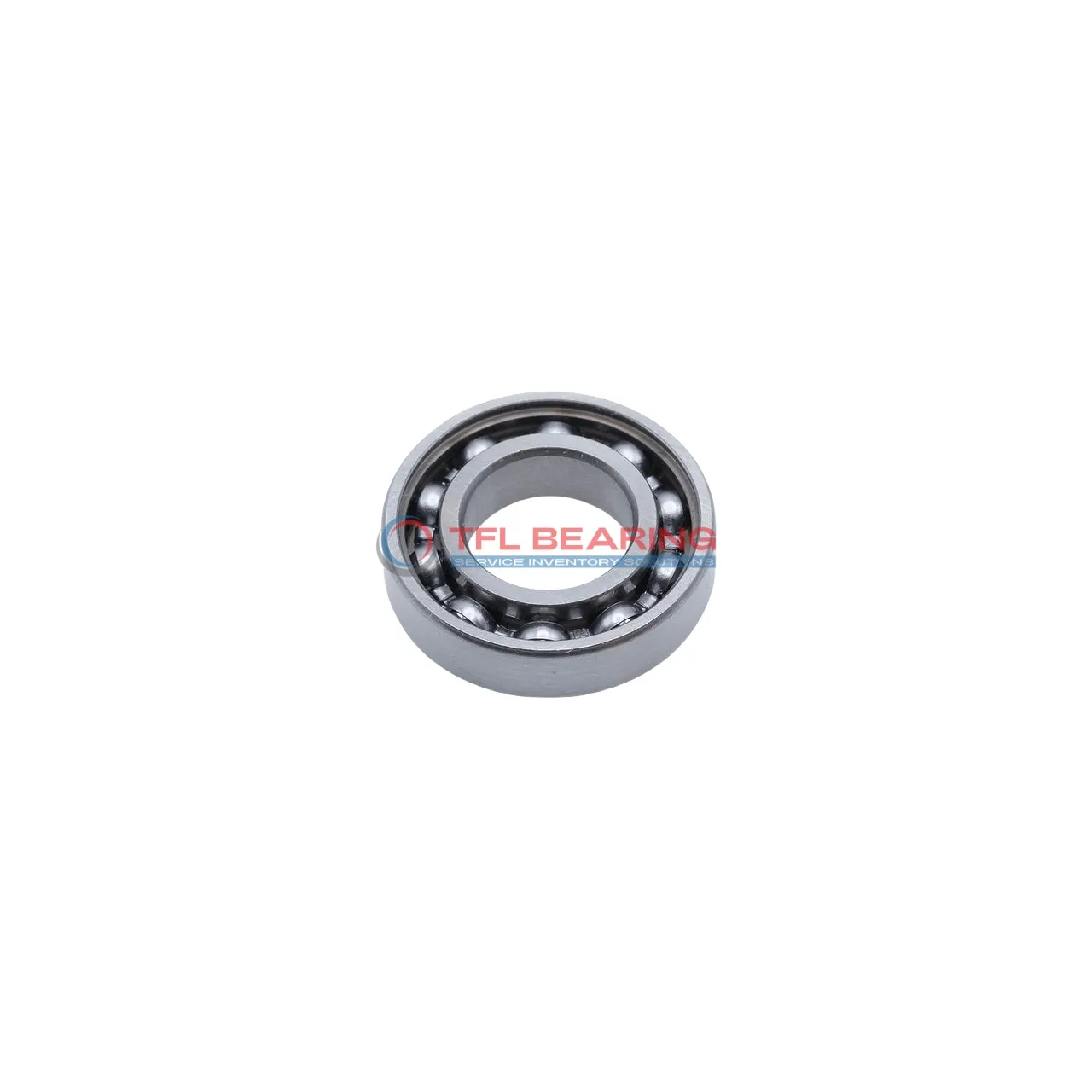

Single Row Deep Groove Ball Bearings 6010/W64

The 6010/W64 is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4901 lbf and operates smoothly at speeds up to 8400 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage offers durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 261g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g
Single Row Deep Groove Ball Bearings 6010/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6010/W64 Bearing

6010/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4901 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 6010/W64 Bearing reduces friction and extends maintenance intervals.
With a maximum speed of 8,400 rpm, it balances efficiency and durability.

6010/W64 Bearing operates smoothly in temperatures from -30°C to 120°C, making it versatile for different environments.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Industrial Uses of 6010/W64 Bearing
6010/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The solid oil lubrication reduces maintenance needs, making it ideal for continuous-duty environments.

Where Is 6010/W64 Bearing Used?
In automotive applications, 6010/W64 Bearing fits well in alternators and small gearboxes, thanks to its compact design and reliable performance. The chrome steel construction also handles moderate speeds and loads with ease.

Built for Heavy-Duty Use: 6010/W64 Bearing
For automation systems, 6010/W64 Bearing works efficiently in conveyor rollers and robotic joints, where precision and durability matter. Its open seal type allows for easy inspection and re-lubrication when needed.

Light-Duty vs Heavy-Duty: Best Uses for 6010/W64 Bearing
In consumer electronics like printers, 6010/W64 Bearing provides quiet and consistent performance for moving parts. The ABEC 1 tolerance ensures sufficient precision for everyday applications without over-engineering.
