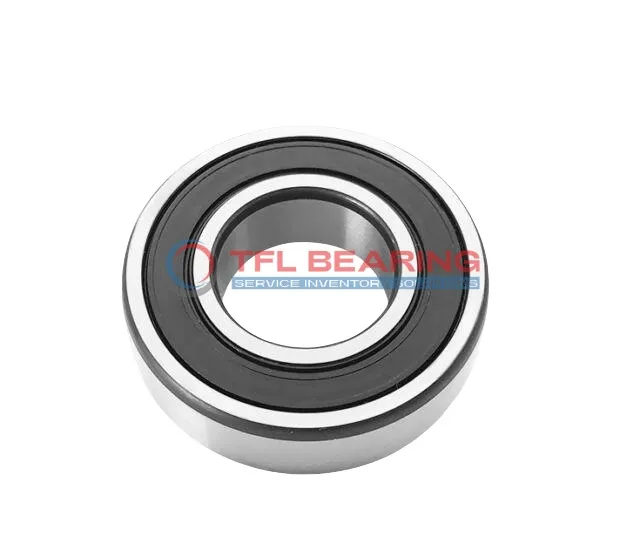

Single Row Deep Groove Ball Bearings 6010-RS1/C3

Single Row Deep Groove Ball Bearings 6010-RS1/C3

The 6010-RS1/C3 is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4901 lbf and operates smoothly at speeds up to 8400 RPM.

Its sealed design keeps dirt out and grease in, ensuring low maintenance and longer life. The C3 radial clearance allows for slight thermal expansion, making it adaptable to varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It works well in electric motors, pumps, or small machinery where reliability is key.

Weighing 261g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010-RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g
  • price（$） 11.943
Single Row Deep Groove Ball Bearings 6010-RS1/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6010-RS1/C3 Bearing for Precision Tasks?

6010-RS1/C3 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 4901 lbf, it handles demanding conditions reliably.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating temperatures.

6010-RS1/C3 Bearing operates smoothly up to 8,400 rpm, balancing speed and stability.
Its single-row deep groove design ensures efficient load distribution and reduced friction.

The sealed structure minimises maintenance needs, ideal for long-term use in industrial settings.
Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Application

Ideal for Precision: 6010-RS1/C3 Bearing
The 6010-RS1/C3 Bearing is commonly used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability even in demanding environments.

Where Is 6010-RS1/C3 Bearing Used?
In automotive applications, 6010-RS1/C3 Bearing fits well in components like alternators and water pumps, providing reliable radial load support. The C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

Built for Heavy-Duty Use: 6010-RS1/C3 Bearing
For automation equipment, 6010-RS1/C3 Bearing works efficiently in robotic arms and assembly lines, thanks to its smooth operation and low maintenance needs. The sealed design also extends its lifespan in dusty or wet conditions.

Medical vs Industrial: Where 6010-RS1/C3 Bearing Excels
In medical devices like centrifuges, 6010-RS1/C3 Bearing offers quiet and precise performance, while in industrial settings, it handles heavier loads without compromising reliability. Its versatility makes it a go-to choice across sectors.

Perfect Fit for Automation: 6010-RS1/C3 Bearing
The 6010-RS1/C3 Bearing is ideal for 3D printers and CNC machines, where precision and low friction are key. Its sealed construction ensures consistent performance even in high-speed operations.
