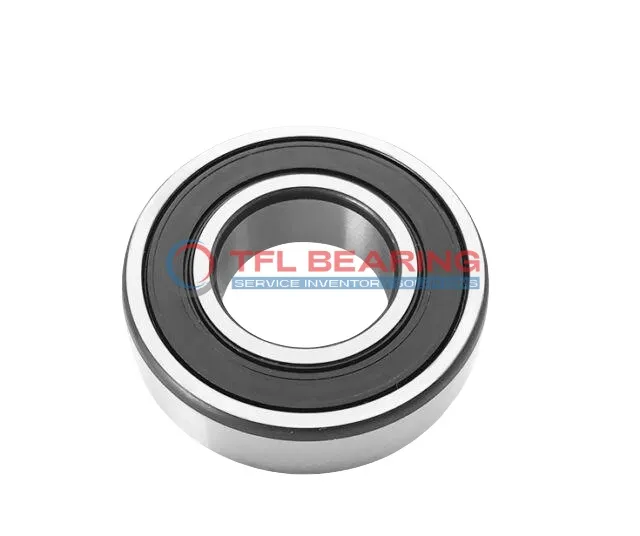

Single Row Deep Groove Ball Bearings 6010-2RS1/MTVM121

Single Row Deep Groove Ball Bearings 6010-2RS1/MTVM121

The 6010-2RS1/MTVM121 is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4901 lbf and runs smoothly at speeds up to 8400 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, while the ABEC 1 tolerance ensures reliable performance.

This bearing suits temperatures from -30°C to 120°C, fitting well in motors or pumps. Weighing 261g, it’s a compact yet robust choice for various industrial uses.

Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacements. A practical option for radial load applications needing sealed protection.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010-2RS1/MTVM121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g
  • price（$） 7.479
Single Row Deep Groove Ball Bearings 6010-2RS1/MTVM121 dimension drawing
Download DWG Download PDF

Features

Why Choose 6010-2RS1/MTVM121 Bearing for Precision Tasks?

6010-2RS1/MTVM121 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The bearing handles dynamic radial loads up to 4901 lbf, making it suitable for demanding industrial use.
With a maximum speed of 8,400 rpm, it delivers reliable operation in high-speed environments.

6010-2RS1/MTVM121 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its ABEC 1 tolerance class provides precise performance for various mechanical applications.

Application

Common Applications of 6010-2RS1/MTVM121 Bearing
The 6010-2RS1/MTVM121 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6010-2RS1/MTVM121 Bearing is often found in wheel hubs and alternators, providing reliable radial load support. The metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6010-2RS1/MTVM121 Bearing offers smooth and quiet operation. Its sealed design also helps extend the lifespan of the appliance by reducing wear.

In automation systems, 6010-2RS1/MTVM121 Bearing is used in conveyor belts and robotic arms, where precision and reliability are key. The bearing’s ability to handle moderate speeds makes it suitable for repetitive tasks.
