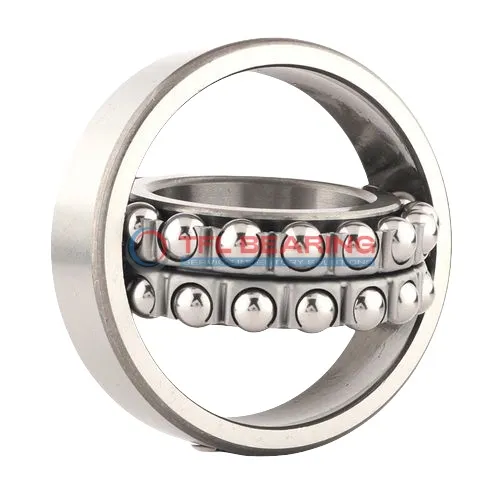

Self Aligning Ball Bearings 2314

Self Aligning Ball Bearings 2314

The 2314 is a self-aligning ball bearing with a 70mm bore and 150mm outer diameter, crafted from robust chrome steel. Its double-row design handles radial loads up to 24975 lbf and operates smoothly at speeds up to 6000 RPM.

The open seal type allows for easy lubrication, while the stainless steel cage ensures durability. It works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or industrial fans where misalignment might occur.

Weighing 3.9kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2314
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 92 mm
  • Internal Diameter On Outer Ring 128.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 24975 lbf
  • Static Radial Load 8438 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 3.9 kg
  • Price（$） 130.32
Self Aligning Ball Bearings 2314 dimension drawing
Download DWG Download PDF

Features

How Does 2314 Bearing Reduce Friction?

2314 Bearing features a double-row design with chrome steel balls, ensuring smooth rotation and reduced friction.
Its dynamic radial load capacity of 24,975 lbf makes it suitable for heavy-duty applications.
The stainless steel cage maintains ball alignment, enhancing durability and performance.
With a maximum speed of 6,000 rpm, it offers reliable operation in various conditions.

Application

Industrial Uses of 2314 Bearing
2314 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stability even under significant radial loads.

In automotive applications, 2314 Bearing fits well in gearboxes and drivetrains, providing smooth operation and reducing wear. Its chrome steel construction offers durability in high-stress environments.

For automation equipment, 2314 Bearing supports robotic arms and assembly lines, where precision and reliability are key. The open seal design allows for easy lubrication, extending service life.

Medical imaging devices benefit from 2314 Bearing’s consistent performance and low maintenance needs. The stainless steel cage adds resistance to corrosion in sterile environments.

In household appliances like washing machines, 2314 Bearing handles unbalanced loads with ease. Its metric sizing makes it compatible with a variety of European and Asian models.
