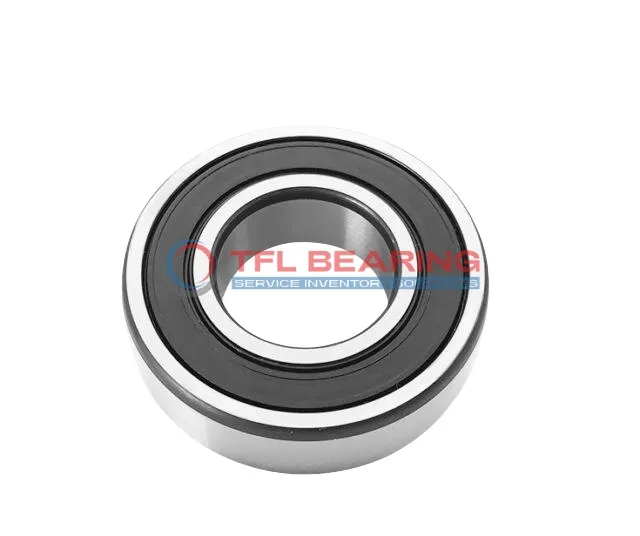

Single Row Deep Groove Ball Bearings 6010-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6010-2RS1/C3GJN

The 6010-2RS1/C3GJN is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4901 lbf and operates smoothly at speeds up to 8400 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 261g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g
Single Row Deep Groove Ball Bearings 6010-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6010-2RS1/C3GJN Bearing

6010-2RS1/C3GJN Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4901 lbf, ensuring steady performance in various applications.
The sealed design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 8,400 rpm, it delivers both durability and efficiency.

Why Choose 6010-2RS1/C3GJN Bearing for Precision Tasks?

6010-2RS1/C3GJN Bearing features a single-row deep groove design, ideal for precise radial load handling.
The C3 radial clearance ensures smooth operation, even under varying temperatures.
Its chrome steel construction provides reliable performance in temperatures from -30° to 120°C.
The sealed design reduces maintenance needs, making it a practical choice for long-term use.

Engineered for Precision: 6010-2RS1/C3GJN Bearing

6010-2RS1/C3GJN Bearing’s chrome steel cage keeps the balls aligned, minimising wear and extending service life.
Its static radial load capacity of 3732 lbf ensures stability in demanding conditions.
The ABEC 1 tolerance class guarantees consistent performance for precision applications.
Weighing just 261 g, it combines strength with a lightweight design.

Application

Industrial Uses of 6010-2RS1/C3GJN Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6010-2RS1/C3GJN Bearing Used?
You’ll find this bearing in household appliances like washing machines, where its radial load capacity handles the spinning drum smoothly. The chrome steel construction also makes it durable for long-term use.

Built for Heavy-Duty Use: 6010-2RS1/C3GJN Bearing
In automotive applications, this bearing supports components like alternators and water pumps. Its sealed design prevents contamination, making it ideal for harsh environments.

Light-Duty vs Heavy-Duty: Best Uses for 6010-2RS1/C3GJN Bearing
For light-duty tasks, it works well in office printers, while heavy-duty uses include industrial fans. The metric sizing ensures compatibility with a wide range of equipment.

Perfect Fit for Automation: 6010-2RS1/C3GJN Bearing
In robotic arms, this bearing provides smooth rotation thanks to its deep groove design. The ABEC 1 tolerance offers a good balance of precision and cost-effectiveness.
