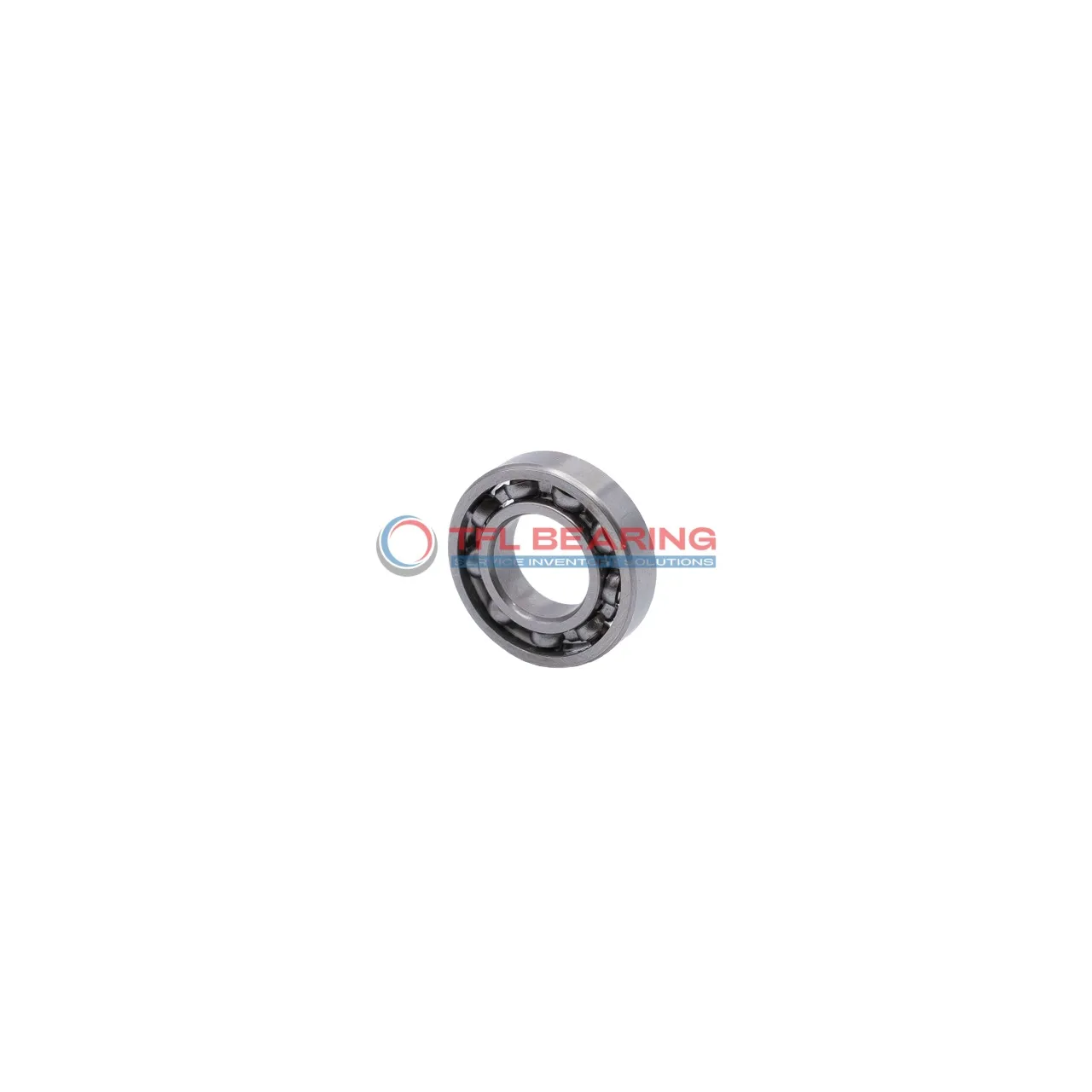

Inch Size Miniature Ball Bearings R2-6

Inch Size Miniature Ball Bearings R2-6

The R2-6 is a compact inch-sized miniature ball bearing, measuring just 0.125″×0.375″×0.1094″. Made from chrome steel with a stainless steel cage, it’s built for durability in small spaces.

This single-row radial bearing handles loads up to 122 lbf and spins smoothly at speeds up to 53,000 RPM. Its open design allows easy lubrication, while the ABEC1 tolerance ensures reliable performance.

With a temperature range of -86 to 230°F, it’s versatile for various environments. The bearing’s lightweight design (0.96g) makes it ideal for precision instruments or small machinery.

Compliant with RoHS and REACH standards, it’s a safe choice for industrial or hobbyist applications where space is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R2-6
  • Brand TFL
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Radial Clearance 0.00008" to 0.0005"
  • Ball Qty 7
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1094"
  • Width Tolerance -0.005" to 0"
  • Ball Dia 0.06252"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 122 lbf
  • Static Radial Load 41 lbf
  • Max Speed 53000 rpm
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.96 g
  • Price（$） 1.035
Inch Size Miniature Ball Bearings R2-6 dimension drawing
Download DWG Download PDF

Features

Why Choose R2-6 Bearing for Precision Tasks?

R2-6 Bearing features a chrome steel construction, ensuring durability and smooth operation in precision applications.
Its ABEC1 tolerance class provides consistent performance, making it suitable for tasks requiring accuracy.

With a dynamic radial load capacity of 122 lbf, R2-6 Bearing handles light to moderate loads efficiently.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

R2-6 Bearing operates in a wide temperature range from -86 to 230 °F, adapting to various environments.
Its compact size of 0.125″×0.375″×0.1094″ makes it ideal for miniature applications.

Application

Key Fields for R2-6 Bearing
R2-6 Bearing is commonly used in small electric motors, where its compact size and radial load capacity make it ideal for tight spaces. The open design allows for easy lubrication, ensuring smooth operation over time.

In robotics, R2-6 Bearing fits well in joint mechanisms, providing reliable movement with minimal friction. Its chrome steel construction ensures durability even in high-speed applications.

For precision instruments like optical devices, R2-6 Bearing offers consistent performance due to its ABEC1 tolerance. The lightweight design also helps reduce overall equipment weight without sacrificing reliability.

In consumer electronics, R2-6 Bearing can be found in small fans and printers, where quiet operation is essential. The stainless steel cage adds to its longevity in everyday use.
