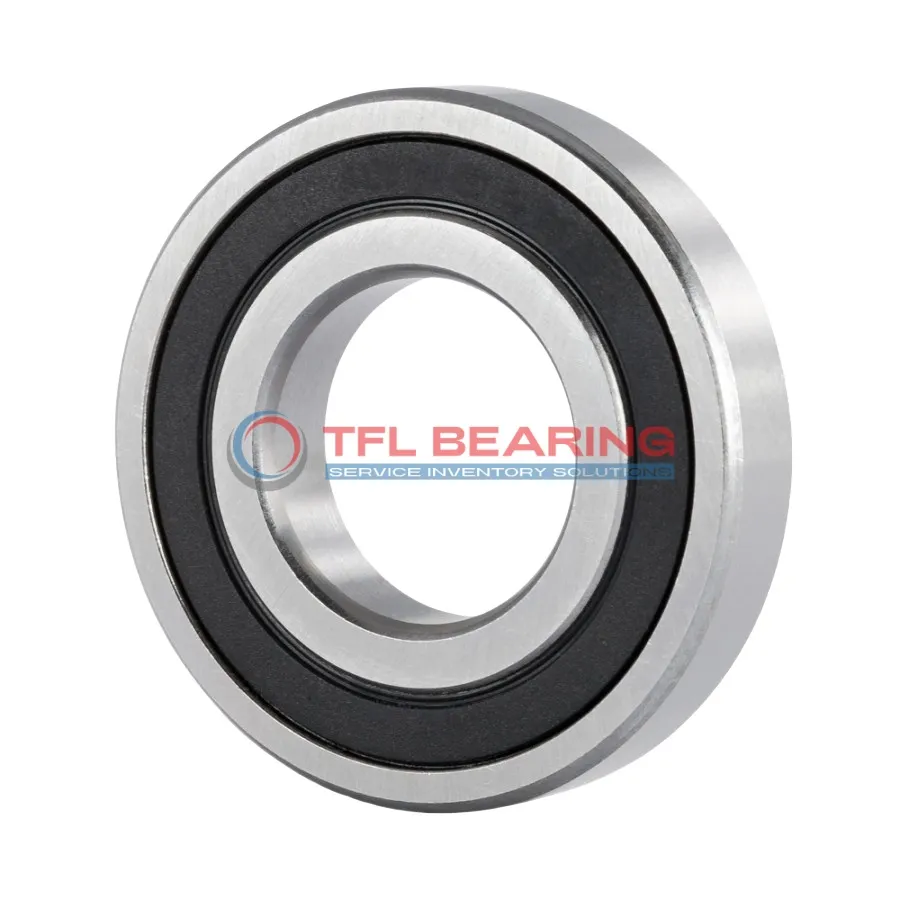

Single Row Deep Groove Ball Bearings 6009-2RS1GJN

Single Row Deep Groove Ball Bearings 6009-2RS1GJN

The 6009-2RS1GJN is a sealed single row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4721 lbf and operates smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds strength and durability, even in demanding conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 245g, it’s lightweight yet robust for its size. Ideal for applications like electric motors or pumps where radial loads and sealed protection are needed. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RS1GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g
  • price（$） 10.071
Single Row Deep Groove Ball Bearings 6009-2RS1GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009-2RS1GJN Bearing

6009-2RS1GJN Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4721 lbf.
Its sealed design protects against dust and moisture, making it suitable for various environments.
The ABEC 1 tolerance ensures reliable performance for general applications.
With a maximum speed of 9,200 rpm, it balances efficiency and durability.

Application

Common Applications of 6009-2RS1GJN Bearing
6009-2RS1GJN Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

What Makes 6009-2RS1GJN Bearing a Preferred Choice?
In automotive applications, 6009-2RS1GJN Bearing fits well in wheel hubs and alternators, providing reliable performance under radial loads. Its ABEC 1 tolerance makes it suitable for standard precision requirements.

Built for Heavy-Duty Use: 6009-2RS1GJN Bearing
For household appliances like washing machines, 6009-2RS1GJN Bearing offers smooth operation and long service life. The sealed design also reduces maintenance needs, making it a practical choice for everyday use.

Light-Duty vs Heavy-Duty: Best Uses for 6009-2RS1GJN Bearing
In light-duty applications like office printers, 6009-2RS1GJN Bearing ensures quiet and efficient performance. For heavier tasks, such as conveyor systems, it handles radial loads with ease.
