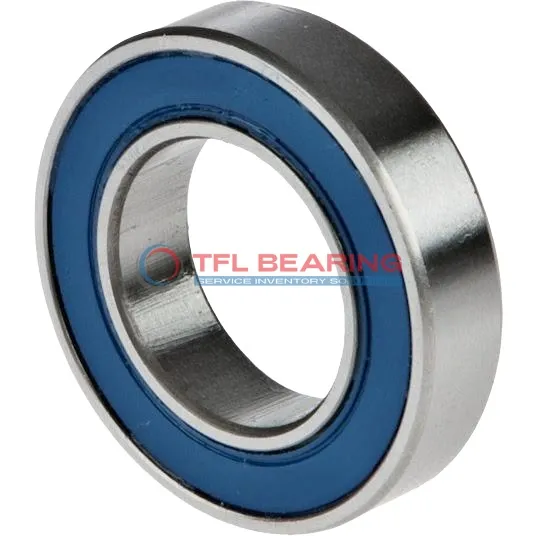

Single Row Deep Groove Ball Bearings 6007-2RSJEM

Single Row Deep Groove Ball Bearings 6007-2RSJEM

The 6007-2RSJEM is a sealed single row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3574 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds strength and longevity, ensuring reliable performance.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It works well in temperatures from -30°C to 120°C, suitable for electric motors or small machinery.

Weighing just 155g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Max Speed 11000 rpm
  • Weight 155 g
  • price（$） 7.02
Single Row Deep Groove Ball Bearings 6007-2RSJEM dimension drawing
Download DWG Download PDF

Features

How Does 6007-2RSJEM Bearing Reduce Friction?

6007-2RSJEM Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its sealed construction keeps contaminants out, enhancing performance in dusty or humid environments.

The chrome steel rings and balls in 6007-2RSJEM Bearing ensure durability and low friction during operation.
With a dynamic radial load capacity of 3574 lbf, it handles demanding applications with ease.

6007-2RSJEM Bearing operates efficiently at speeds up to 11,000 rpm while maintaining stability.
Its ABEC 1 tolerance class guarantees consistent performance for general industrial use.

Application

Common Applications of 6007-2RSJEM Bearing
6007-2RSJEM Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

How Does 6007-2RSJEM Bearing Improve Performance?
In automotive applications, 6007-2RSJEM Bearing enhances the efficiency of components like alternators and water pumps. Its ABEC 1 tolerance provides reliable performance without excessive cost.

Ideal for Precision: 6007-2RSJEM Bearing
For medical devices such as lab equipment, 6007-2RSJEM Bearing offers smooth operation thanks to its deep groove design. The sealed feature also makes it suitable for clean environments.

Automotive vs Industrial: Applications of 6007-2RSJEM Bearing
While 6007-2RSJEM Bearing works well in car transmissions, it’s equally effective in factory machinery like gearboxes. Its balanced load capacity makes it versatile for different settings.

Perfect Fit for Automation: 6007-2RSJEM Bearing
In robotic arms and automated systems, 6007-2RSJEM Bearing provides quiet and efficient movement. The metric sizing ensures compatibility with a range of European and Asian designs.
