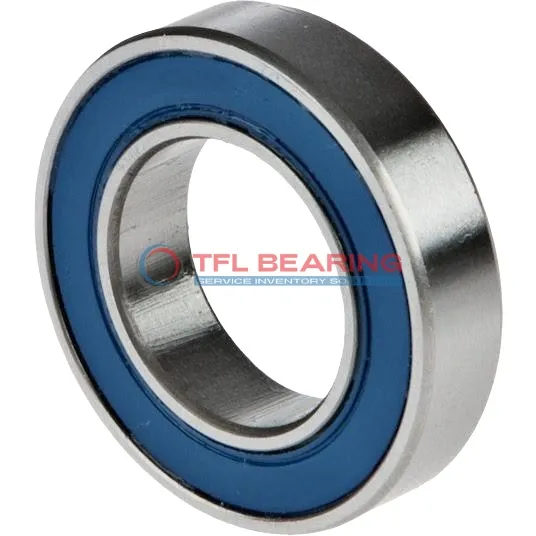

Single Row Deep Groove Ball Bearings 6007-2RS2/C4LHT23

Single Row Deep Groove Ball Bearings 6007-2RS2/C4LHT23

The 6007-2RS2/C4LHT23 is a single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3574 lbf and operates smoothly at speeds up to 11000 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The C4 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 155g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007-2RS2/C4LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Max Speed 11000 rpm
  • Weight 155 g
  • price（$） 8.37
Single Row Deep Groove Ball Bearings 6007-2RS2/C4LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 6007-2RS2/C4LHT23 Bearing Reduce Friction?

6007-2RS2/C4LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load handling.

The sealed construction prevents contaminants from entering, ensuring consistent performance.

Made from chrome steel, it offers durability and resistance to wear in various applications.

With a maximum speed of 11,000 rpm, it balances efficiency and reliability.

Application

Common Applications of 6007-2RS2/C4LHT23 Bearing
In industrial settings, 6007-2RS2/C4LHT23 Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C4 clearance ensures smooth operation even under varying thermal conditions.

Where Is 6007-2RS2/C4LHT23 Bearing Used?
You’ll often find 6007-2RS2/C4LHT23 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel materials provide long-lasting performance in demanding environments.

Perfect Fit for Automation: 6007-2RS2/C4LHT23 Bearing
6007-2RS2/C4LHT23 Bearing works well in robotic arms and conveyor systems, offering reliable performance with minimal maintenance. Its ABEC 1 tolerance makes it suitable for precision applications without unnecessary cost.

Medical vs Industrial: Where 6007-2RS2/C4LHT23 Bearing Excels
In medical devices like centrifuges, 6007-2RS2/C4LHT23 Bearing’s sealed design ensures hygiene and reliability. For industrial gearboxes, its high-speed capability and radial load support make it a dependable choice.

Light-Duty vs Heavy-Duty: Best Uses for 6007-2RS2/C4LHT23 Bearing
For light-duty applications like office printers, 6007-2RS2/C4LHT23 Bearing provides quiet and efficient operation. In heavier machinery, its robust construction handles radial loads with ease, ensuring durability.
