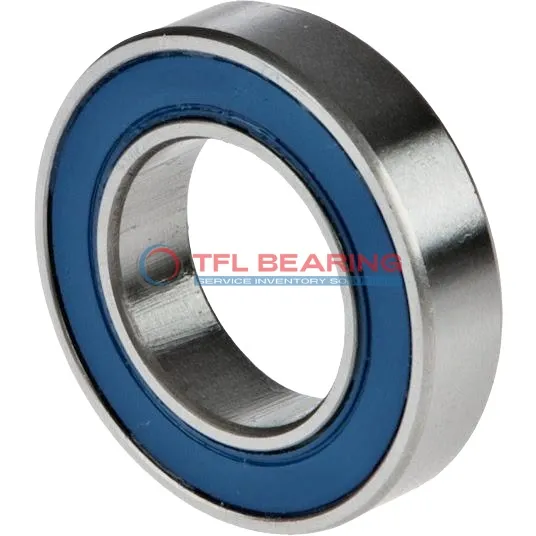

Single Row Deep Groove Ball Bearings 6007-2RS1

The 6007-2RS1 is a sealed single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3777 lbf and operates smoothly at speeds up to 7000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage ensures reliable performance. The bearing works well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 0.16kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6007-2RS1
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 35 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.011mm to 0
Width 14 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Grease
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 3777 lbf
Static Radial Load 2293 lbf
Max Speed 7000 rpm
Weight 0.16 kg
price（$） 8.064

Single Row Deep Groove Ball Bearings 6007-2RS1 dimension drawing

Download DWG Download PDF

Features

How Does 6007-2RS1 Bearing Reduce Friction?

6007-2RS1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

Its sealed design keeps grease lubrication intact, minimising wear and maintenance needs.
With a maximum speed of 7,000 rpm, it delivers reliable performance in various applications.

The stainless steel cage maintains ball alignment, enhancing efficiency and longevity.
6007-2RS1 Bearing operates in temperatures from -30° to 120°C, adapting to diverse environments.

Application

Common Applications of 6007-2RS1 Bearing
6007-2RS1 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6007-2RS1 Bearing can be found in components like alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6007-2RS1 Bearing is often used in washing machines and fans, where its smooth operation and low maintenance are appreciated. The grease lubrication ensures quiet and efficient performance over time.

In automation systems, 6007-2RS1 Bearing supports robotic arms and conveyor belts, offering precise movement and long service life. The stainless steel cage adds extra resistance to wear in high-use scenarios.
