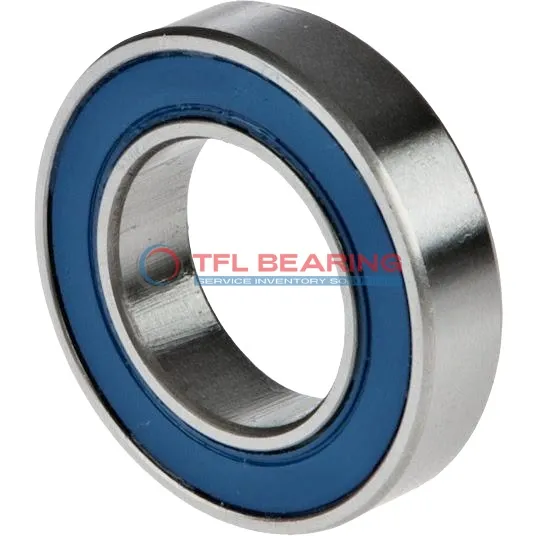

Single Row Deep Groove Ball Bearings 6007-2RS1/W64

The 6007-2RS1/W64 is a sealed single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3574 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil lubrication ensures long-lasting performance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 155g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6007-2RS1/W64
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 35 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 14 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3574 lbf
Static Radial Load 2316 lbf
Max Speed 11000 rpm
Weight 155 g
price（$） 13.752

Single Row Deep Groove Ball Bearings 6007-2RS1/W64 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6007-2RS1/W64 Bearing

6007-2RS1/W64 Bearing is designed with a single row deep groove, ideal for handling radial loads efficiently.

Its sealed construction keeps out contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.

With a dynamic radial load capacity of 3574 lbf, it performs reliably in demanding applications.

Application

Industrial Uses of 6007-2RS1/W64 Bearing
6007-2RS1/W64 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6007-2RS1/W64 Bearing Used?
You’ll often find 6007-2RS1/W64 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its chrome steel construction also makes it durable under high-speed conditions.

Perfect Fit for Automation: 6007-2RS1/W64 Bearing
6007-2RS1/W64 Bearing works well in robotic arms and assembly line equipment, where precision and low maintenance are key. The sealed design reduces the need for frequent re-lubrication, saving time and effort.

Light-Duty vs Heavy-Duty: Best Uses for 6007-2RS1/W64 Bearing
6007-2RS1/W64 Bearing handles both light-duty tasks like household fans and heavier industrial loads with ease. Its versatility makes it a go-to choice for various applications, from small appliances to machinery.
