Single Row Deep Groove Ball Bearings 6006/C3W64

Single Row Deep Groove Ball Bearings 6006/C3W64

The 6006/C3W64 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2967 lbf and operates smoothly at speeds up to 13000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 116g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g

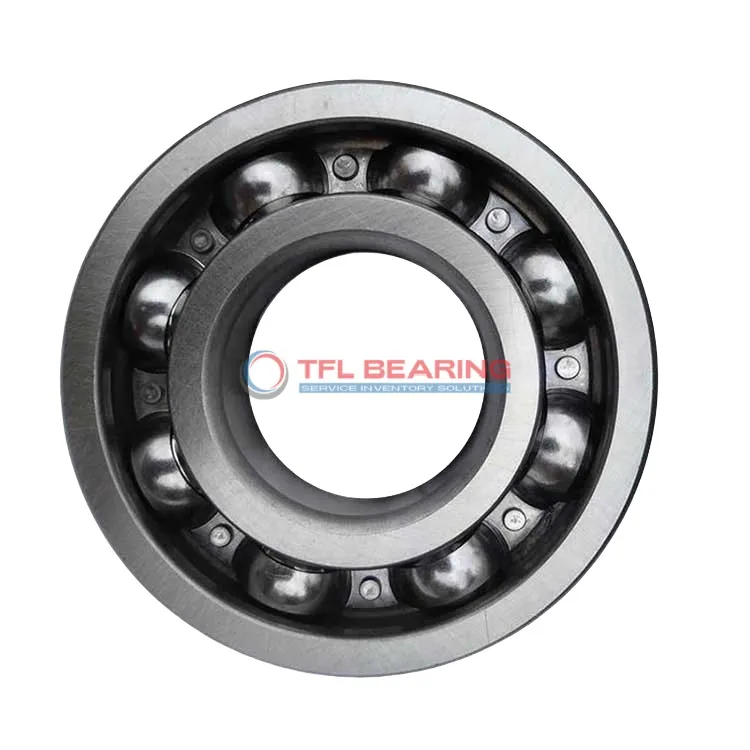

Single Row Deep Groove Ball Bearings 6006/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006/C3W64 Bearing

6006/C3W64 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 2967 lbf, making it suitable for various applications.

The solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.
With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed conditions.

6006/C3W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides flexibility in different operating environments.

The open design simplifies installation, saving time and effort.
Its durable construction ensures a long service life, reducing replacement costs.

Application

Common Applications of 6006/C3W64 Bearing
In industrial settings, 6006/C3W64 Bearing is widely used in electric motors and pumps due to its reliable radial load capacity. The C3 clearance ensures smooth operation even with thermal expansion.

Where Is 6006/C3W64 Bearing Used?
You’ll often find 6006/C3W64 Bearing in automotive applications like alternators and wheel hubs. Its solid oil lubrication reduces maintenance needs, making it a hassle-free choice.

Built for Heavy-Duty Use: 6006/C3W64 Bearing
This bearing handles high-speed operations in conveyor systems effortlessly. The chrome steel construction offers durability in demanding environments.

Automotive vs Industrial: Applications of 6006/C3W64 Bearing
In cars, 6006/C3W64 Bearing supports smooth rotation in gearboxes, while in factories, it’s trusted for machinery like compressors. Its versatility makes it a go-to option.

Perfect Fit for Automation: 6006/C3W64 Bearing
Robotic arms and 3D printers benefit from 6006/C3W64 Bearing’s precision. The open design allows for easy inspection and re-lubrication when needed.
