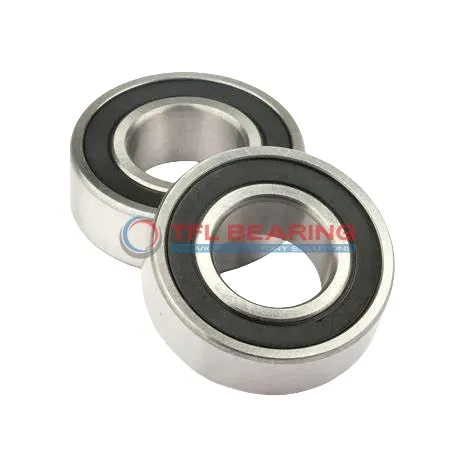

Single Row Deep Groove Ball Bearings 6006-2RS2/C3S0GWP

Single Row Deep Groove Ball Bearings 6006-2RS2/C3S0GWP

The 6006-2RS2/C3S0GWP is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 2967 lbf and operates smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance and durable for various conditions. The C3 radial clearance ensures reliable performance under thermal expansion or heavy loads.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It works well in electric motors, pumps, or small machinery where radial loads are common.

Weighing just 116g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 150°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-2RS2/C3S0GWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
  • price（$） 6.552
Single Row Deep Groove Ball Bearings 6006-2RS2/C3S0GWP dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006-2RS2/C3S0GWP Bearing

6006-2RS2/C3S0GWP Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2967 lbf, ensuring reliable performance in various applications.

The sealed design of 6006-2RS2/C3S0GWP Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 13,000 rpm, it balances durability and efficiency.

6006-2RS2/C3S0GWP Bearing operates smoothly in temperatures ranging from -30°C to 150°C.
Its chrome steel cage ensures stability and reduces wear, making it a dependable choice.

The C3 radial clearance in 6006-2RS2/C3S0GWP Bearing allows for thermal expansion, enhancing performance under varying conditions.
This makes it suitable for applications requiring consistent reliability.

Application

Industrial Uses of 6006-2RS2/C3S0GWP Bearing
6006-2RS2/C3S0GWP Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying temperatures.

What Makes 6006-2RS2/C3S0GWP Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6006-2RS2/C3S0GWP Bearing offers reliable performance with its chrome steel construction. Its sealed design also reduces maintenance needs in harsh environments.

Perfect Fit for Automation: 6006-2RS2/C3S0GWP Bearing
6006-2RS2/C3S0GWP Bearing works well in robotic arms and assembly line equipment, thanks to its balanced load capacity. The metric sizing makes it easy to integrate into various machinery designs.

Medical vs Industrial: Where 6006-2RS2/C3S0GWP Bearing Excels
In medical devices like centrifuges, 6006-2RS2/C3S0GWP Bearing provides quiet and consistent operation. For industrial fans, its durability and temperature resistance make it a solid choice.

How Does 6006-2RS2/C3S0GWP Bearing Support High-Speed Operations?
With a max speed of 13,000 rpm, 6006-2RS2/C3S0GWP Bearing is ideal for small appliances like power tools. The sealed design ensures long-lasting performance even in dusty conditions.
