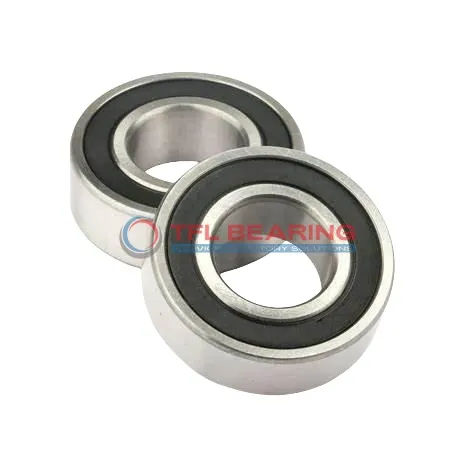

Single Row Deep Groove Ball Bearings 6006-2RS1TN9/C3HGWP

Single Row Deep Groove Ball Bearings 6006-2RS1TN9/C3HGWP

The 6006-2RS1TN9/C3HGWP is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2967 lbf and spins smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and grease in, while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 116g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-2RS1TN9/C3HGWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
Single Row Deep Groove Ball Bearings 6006-2RS1TN9/C3HGWP dimension drawing
Download DWG Download PDF

Features

How Does 6006-2RS1TN9/C3HGWP Bearing Reduce Friction?

6006-2RS1TN9/C3HGWP Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

Its sealed design keeps contaminants out, maintaining consistent performance over time.
With a maximum speed of 13,000 rpm, it offers reliable efficiency in various applications.

The C3 radial clearance provides flexibility, accommodating thermal expansion without compromising performance.
This makes 6006-2RS1TN9/C3HGWP Bearing suitable for both high-speed and high-load scenarios.

Application

Common Applications of 6006-2RS1TN9/C3HGWP Bearing
This sealed deep groove ball bearing is widely used in industrial fans and pumps, where its radial load capacity and C3 clearance ensure reliable performance. The nylon cage reduces friction, making it suitable for continuous operation.

In automotive applications, 6006-2RS1TN9/C3HGWP Bearing fits well in electric motors and alternators, handling moderate speeds with ease. Its sealed design protects against dust and moisture, extending service life in challenging conditions.

For home appliances like washing machines, 6006-2RS1TN9/C3HGWP Bearing offers quiet and smooth rotation. The chrome steel construction provides durability, while the compact size fits neatly into tight spaces.

Automation systems benefit from 6006-2RS1TN9/C3HGWP Bearing’s consistent performance in robotic arms and conveyor belts. The ABEC 1 tolerance ensures sufficient precision for most automated tasks without unnecessary cost.

Medical devices such as dental drills use this bearing for its balanced speed and load capabilities. The temperature range allows it to function reliably in sterilisation processes without compromising performance.
