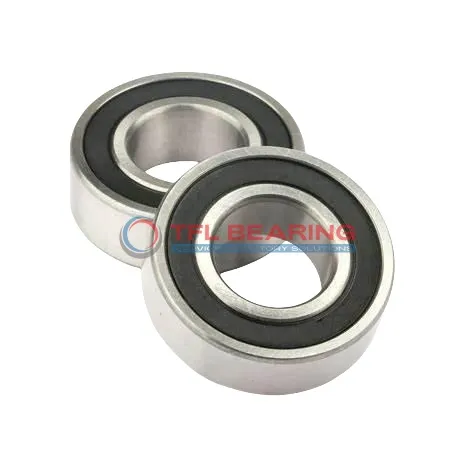

Single Row Deep Groove Ball Bearings 6006-2RS1/W64F

Single Row Deep Groove Ball Bearings 6006-2RS1/W64F

The 6006-2RS1/W64F is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2967 lbf and operates smoothly at speeds reaching 13000 RPM.

Sealed on both sides, this bearing keeps dirt out and lubrication in, extending its lifespan. The solid oil lubrication ensures consistent performance even in demanding conditions.

With a compact width of 13mm, it fits neatly into tight spaces while maintaining durability. Its temperature range of -30°C to 120°C makes it versatile for various environments.

Ideal for applications like electric motors or small machinery where reliability is key. Compliant with RoHS and REACH standards, it’s a safe and practical choice for everyday use. Weighing just 116g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
  • price（$） 12.132
Single Row Deep Groove Ball Bearings 6006-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does 6006-2RS1/W64F Bearing Reduce Friction?

6006-2RS1/W64F Bearing features a deep groove design and solid oil lubrication, ensuring smooth operation with minimal friction.
The chrome steel construction enhances durability while maintaining consistent performance under radial loads.

Its sealed design keeps contaminants out, reducing wear and extending service life.
With a maximum speed of 13,000 rpm, it delivers reliable efficiency in various applications.

The ABEC 1 tolerance class ensures precision, making it suitable for general industrial use.
Its temperature range of -30°C to 120°C allows for versatile operation in different environments.

Application

Common Applications of 6006-2RS1/W64F Bearing
6006-2RS1/W64F Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The solid oil lubrication ensures long service life, even in dusty environments.

Where Is 6006-2RS1/W64F Bearing Used?
In automotive applications, 6006-2RS1/W64F Bearing can be found in alternators and cooling fans, providing reliable radial load support. Its chrome steel construction makes it durable under constant use.

Ideal for Precision: 6006-2RS1/W64F Bearing
For small appliances like washing machines, 6006-2RS1/W64F Bearing offers smooth operation thanks to its balanced design. The sealed feature also protects against moisture and dirt.

Light-Duty vs Heavy-Duty: Best Uses for 6006-2RS1/W64F Bearing
In light-duty applications like office printers, 6006-2RS1/W64F Bearing ensures quiet performance. For heavier tasks, it handles moderate radial loads in conveyor systems effectively.
