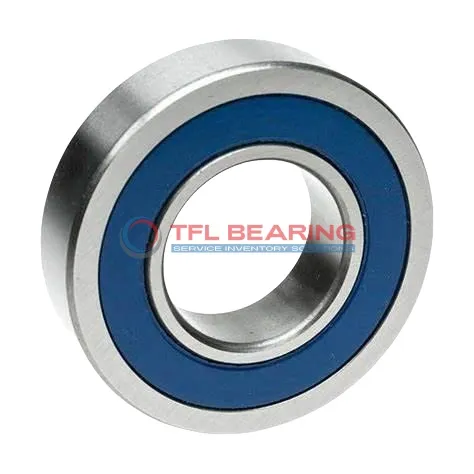

Single Row Deep Groove Ball Bearings 6206-2RS1/GLE8

Single Row Deep Groove Ball Bearings 6206-2RS1/GLE8

The 6206-2RS1/GLE8 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, while the ABEC 1 tolerance ensures reliable performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 199g, it’s a compact yet robust choice for applications like electric motors or small machinery. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/GLE8
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
Single Row Deep Groove Ball Bearings 6206-2RS1/GLE8 dimension drawing
Download DWG Download PDF

Features

Why Choose 6206-2RS1/GLE8 Bearing for Precision Tasks?

6206-2RS1/GLE8 Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the cage maintains alignment for consistent performance.
With a dynamic radial load capacity of 4384 lbf, it suits demanding applications without compromising efficiency.

Operating temperatures range from -30°C to 120°C, making it versatile for different conditions.
Its maximum speed of 11,000 rpm ensures reliable performance in high-speed scenarios.

Application

Common Applications of 6206-2RS1/GLE8 Bearing
The 6206-2RS1/GLE8 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. Its durable chrome steel construction ensures reliable performance in demanding environments.

In automotive applications, 6206-2RS1/GLE8 Bearing is often found in wheel hubs and alternators, providing smooth rotation under radial loads. The metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6206-2RS1/GLE8 Bearing offers quiet and efficient operation. Its sealed design also helps extend the bearing’s lifespan by reducing wear from dust and moisture.

In automation systems, 6206-2RS1/GLE8 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The ABEC 1 tolerance ensures consistent performance in repetitive tasks.
