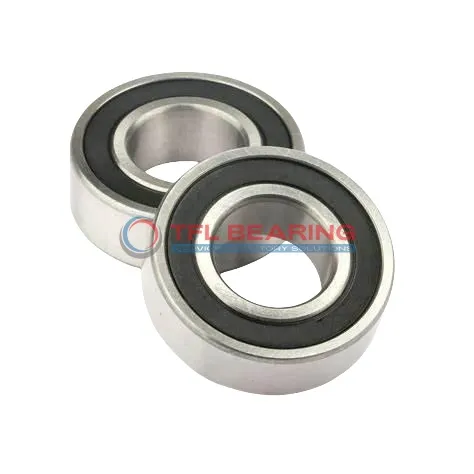

Single Row Deep Groove Ball Bearings 6006-2RS1/GFF/R806

Single Row Deep Groove Ball Bearings 6006-2RS1/GFF/R806

The 6006-2RS1/GFF/R806 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2967 lbf and operates smoothly at speeds up to 13000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds strength and longevity, suitable for temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 116g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-2RS1/GFF/R806
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
Single Row Deep Groove Ball Bearings 6006-2RS1/GFF/R806 dimension drawing
Download DWG Download PDF

Features

How Does 6006-2RS1/GFF/R806 Bearing Reduce Friction?

6006-2RS1/GFF/R806 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its sealed construction prevents contamination, ensuring consistent performance in various environments.

The chrome steel rings and balls in 6006-2RS1/GFF/R806 Bearing minimise friction, enhancing efficiency.
With a maximum speed of 13,000 rpm, it delivers reliable operation for high-speed applications.

6006-2RS1/GFF/R806 Bearing’s ABEC 1 tolerance ensures precise alignment, reducing wear over time.
Its static radial load capacity of 1855 lbf makes it suitable for demanding industrial uses.

Application

Common Applications of 6006-2RS1/GFF/R806 Bearing
The 6006-2RS1/GFF/R806 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. Its durable chrome steel construction ensures reliable performance in demanding environments.

In automotive applications, 6006-2RS1/GFF/R806 Bearing supports components such as alternators and water pumps, providing smooth rotation under radial loads. The metric sizing makes it compatible with a variety of vehicle models.

For home appliances, 6006-2RS1/GFF/R806 Bearing is often found in washing machines and fans, where its sealed design helps extend service life. The balanced load capacity ensures quiet and efficient operation.

In automation systems, 6006-2RS1/GFF/R806 Bearing is used in robotic arms and small machinery, offering precise movement and low maintenance. Its temperature range makes it suitable for both indoor and outdoor use.
