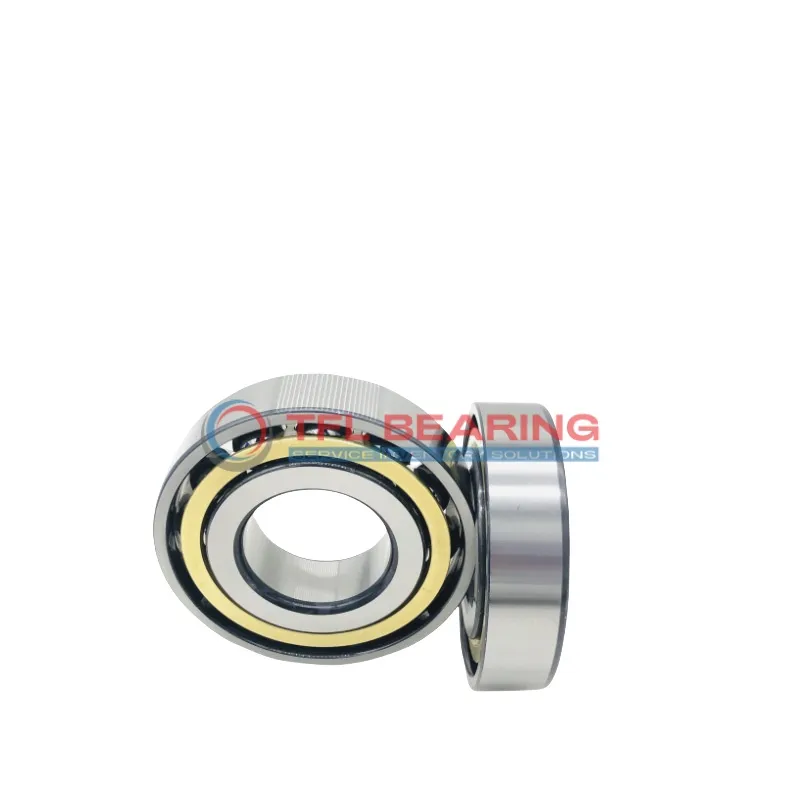

Single Row Angular Contact Ball Bearings (General) 70/1250 AMB

Brand: TFL Bearing Interchangeable: SKF 70/1250 AMB 1250 mm × 1750 mm × 218 mm Metric Open
Part number: 70/1250 AMB
Single Row Angular Contact Ball Bearings (General) 70/1250 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1,250 mm
Bore Dia Tolerance-0.075mm to 0
Outer Dia1,750 mm
Outer Dia Tolerance-0.115mm to 0
Width218 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)1,430.5 mm
External Diameter On Inner Ring (Small Side Face)1,430.5 mm
Internal Diameter On Outer Ring1,569 mm
Chamfer Dimension9.5 mm
Performance
Dynamic Radial Load447,750 lbf
Static Radial Load1,721,250 lbf
Temperature Range-30° to 110 °C
Max Speed240 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)542 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1,600 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 70/1250 AMB is a large single-row angular contact ball bearing with a 1250mm bore and 1750mm outer diameter, built from sturdy chrome steel. It handles heavy radial loads up to 447750 lbf and operates at speeds up to 240 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage ensures smooth rotation and durability. The open design allows for easy lubrication and maintenance.

This bearing is suitable for high-load applications like industrial gearboxes or heavy machinery. It performs reliably in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 1600kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH regulations, it’s a dependable choice for replacements, interchangeable with SKF models.

Features

Performance Features of 70/1250 AMB Bearing

70/1250 AMB Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide high strength, supporting dynamic radial loads up to 447,750 lbf.

The brass cage ensures smooth ball movement, reducing friction and wear during operation.
With a P6 tolerance class, 70/1250 AMB Bearing offers precise performance for demanding applications.

Designed for low-speed operations, it handles up to 240 rpm while maintaining stability.
The open design allows easy lubrication, ensuring consistent performance in varied conditions.

Application

Industrial Uses of 70/1250 AMB Bearing
The 70/1250 AMB Bearing is commonly used in large industrial machinery, such as heavy-duty gearboxes and rolling mills, where its angular contact design handles combined loads effectively. Its brass cage ensures smooth operation even under high radial forces.

Where Is 70/1250 AMB Bearing Used?
You’ll often find 70/1250 AMB Bearing in wind turbine systems, supporting the main shaft with its robust chrome steel construction. The P6 tolerance class makes it reliable for precision applications in harsh environments.

Built for Heavy-Duty Use: 70/1250 AMB Bearing
70/1250 AMB Bearing excels in mining equipment, where its large bore and width handle extreme loads. The lubricated design reduces friction, extending service life in demanding conditions.

Automotive vs Aerospace: Applications of 70/1250 AMB Bearing
In automotive testing rigs, 70/1250 AMB Bearing provides stability for large rotating components. For aerospace, its high static load capacity suits ground support equipment like turbine alignment tools.

Essential Roles of 70/1250 AMB Bearing
70/1250 AMB Bearing is vital in steel production lines, ensuring smooth operation of conveyor rollers. Its 40° contact angle optimises performance under both radial and axial forces.
