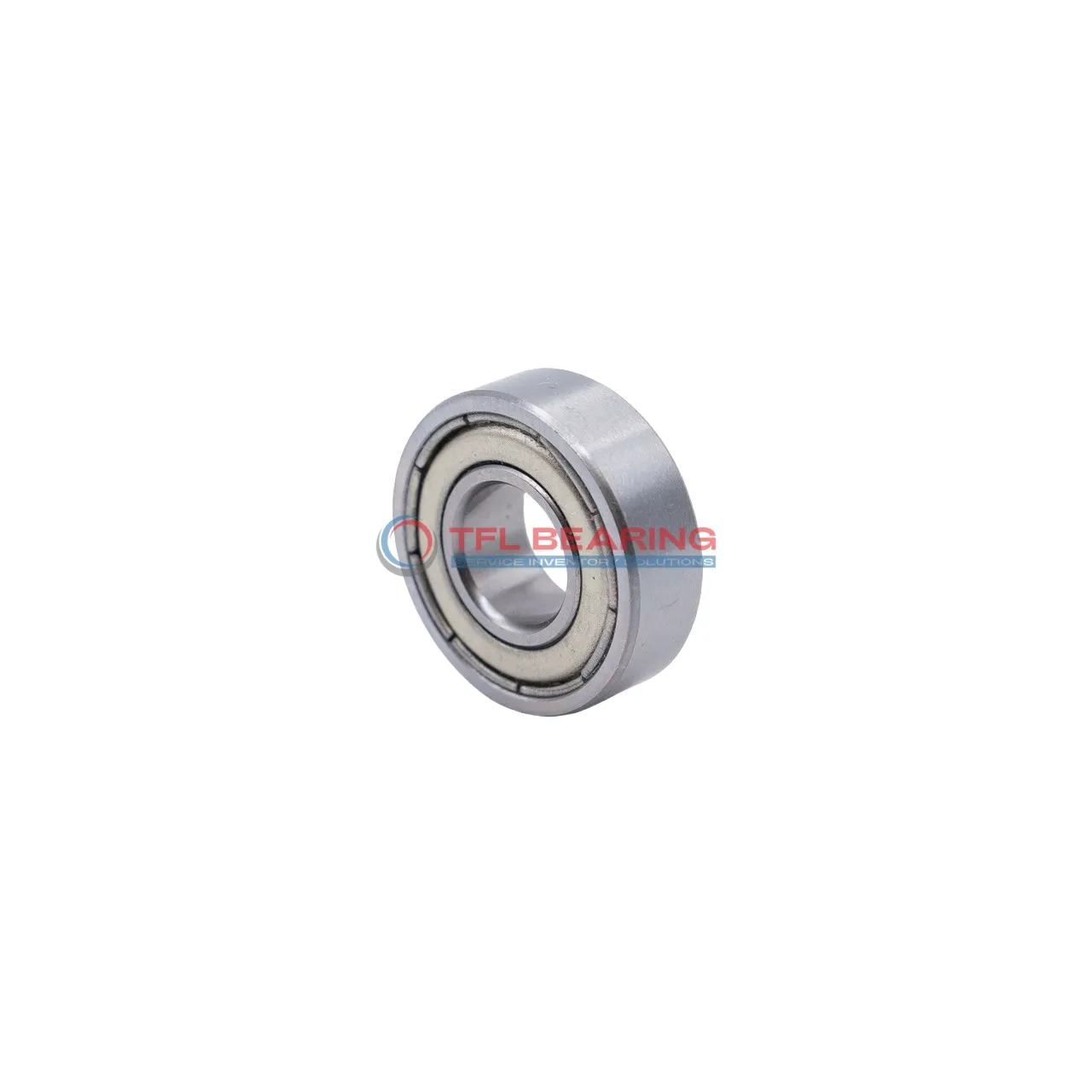

Single Row Deep Groove Ball Bearings 6005-2Z

Single Row Deep Groove Ball Bearings 6005-2Z

The 6005-2Z is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 12mm, crafted from durable chrome steel. It handles radial loads up to 2675 lbf and spins smoothly at speeds up to 16,000 RPM.

Shielded on both sides, it keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring reliable performance in various conditions.

With a temperature range of -30°C to 120°C, it’s suitable for diverse environments. This model is interchangeable with SKF bearings, offering a cost-effective replacement option.

Ideal for electric motors, pumps, or small machinery, it’s a versatile choice for radial load applications. Weighing just 0.083kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2675 lbf
  • Static Radial Load 1472 lbf
  • Max Speed 16000 rpm
  • Weight 0.083 kg
  • price（$） 3.78
Single Row Deep Groove Ball Bearings 6005-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose 6005-2Z Bearing for Precision Tasks?

6005-2Z Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2675 lbf, it handles demanding tasks with ease.
The P6 tolerance class guarantees high precision, making it suitable for sensitive equipment.

6005-2Z Bearing operates efficiently at speeds up to 16,000 rpm, balancing performance and longevity.
Its grease lubrication reduces maintenance needs, ensuring reliable operation over time.

Application

Industrial Uses of 6005-2Z Bearing
6005-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against dust and debris. The chrome steel construction ensures durability in demanding environments.

How Does 6005-2Z Bearing Improve Performance?
In automotive applications, 6005-2Z Bearing enhances efficiency in components such as alternators and water pumps. Its grease lubrication reduces friction, extending service life even under continuous use.

Perfect Fit for Automation: 6005-2Z Bearing
6005-2Z Bearing works well in robotic arms and conveyor systems, thanks to its precise radial load handling. The stainless steel cage adds extra resistance to wear in high-speed operations.

Medical vs Industrial: Where 6005-2Z Bearing Excels
While 6005-2Z Bearing is reliable in medical devices like centrifuges, it truly shines in industrial settings. Its metric sizing and P6 tolerance make it versatile for various machinery needs.
