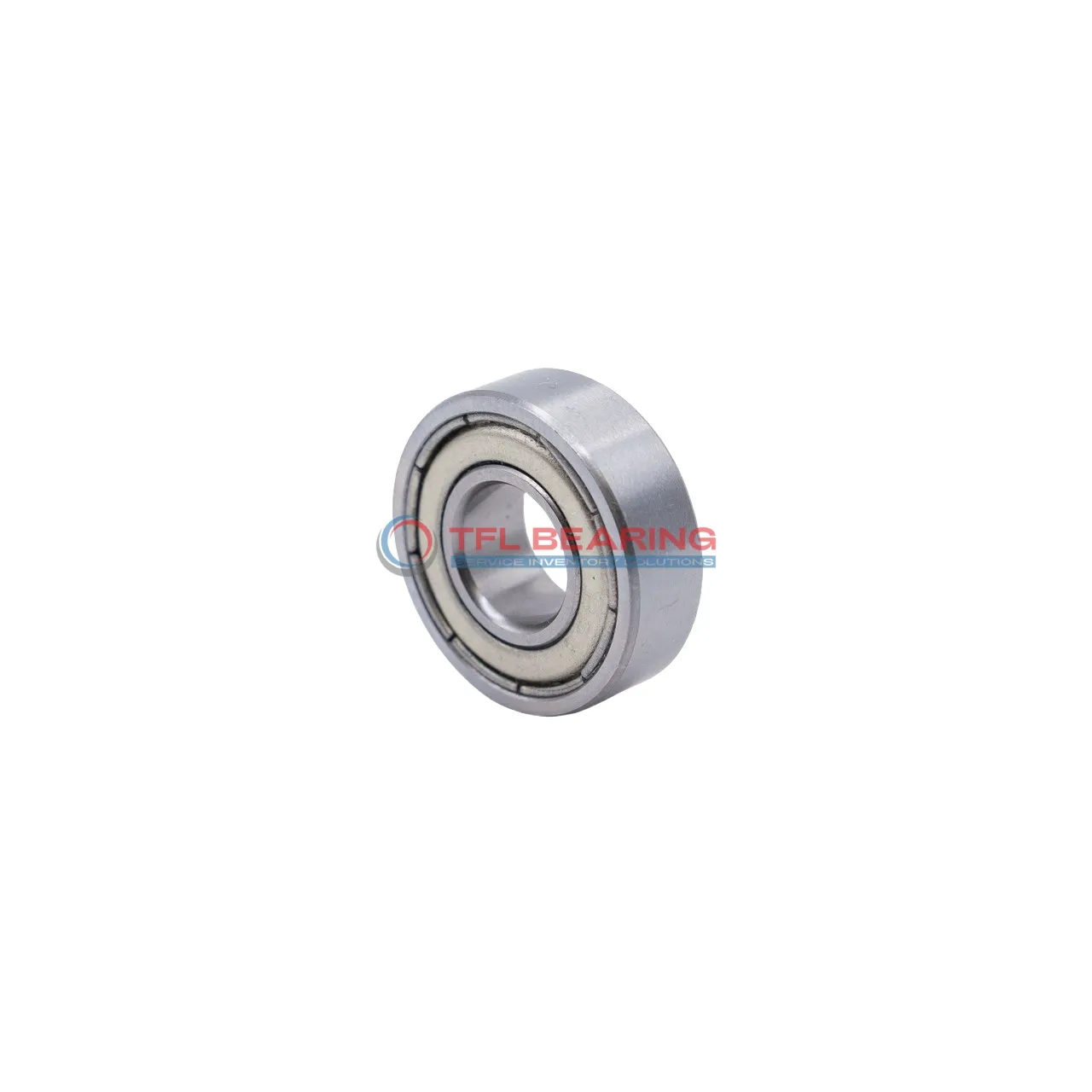

Single Row Deep Groove Ball Bearings 6005-2Z/C2ELHT23

Single Row Deep Groove Ball Bearings 6005-2Z/C2ELHT23

The 6005-2Z/C2ELHT23 is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 12mm, crafted from durable chrome steel. It handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15000 RPM.

Its shielded design keeps out dust and debris, while the C2 radial clearance ensures smooth operation under light loads. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing just 80g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2Z/C2ELHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g
Single Row Deep Groove Ball Bearings 6005-2Z/C2ELHT23 dimension drawing
Download DWG Download PDF

Features

Why Choose 6005-2Z/C2ELHT23 Bearing for Precision Tasks?

6005-2Z/C2ELHT23 Bearing features a shielded design, protecting against dust and contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 2271 lbf, it handles demanding tasks with ease.
The bearing operates efficiently at speeds up to 15,000 rpm, making it suitable for high-performance machinery.

Application

Industrial Uses of 6005-2Z/C2ELHT23 Bearing
6005-2Z/C2ELHT23 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6005-2Z/C2ELHT23 Bearing Used?
You’ll often find 6005-2Z/C2ELHT23 Bearing in automotive applications such as alternators and small gearboxes, thanks to its reliable radial load handling. Its compact size makes it a great fit for tight spaces.

Built for Heavy-Duty Use: 6005-2Z/C2ELHT23 Bearing
6005-2Z/C2ELHT23 Bearing works well in conveyor systems, where its C2 clearance provides smooth operation under varying loads. The ABEC 1 tolerance ensures consistent performance over time.

Automotive vs Industrial: Applications of 6005-2Z/C2ELHT23 Bearing
In cars, 6005-2Z/C2ELHT23 Bearing handles radial loads in components like fans and pulleys. For industrial settings, it’s a go-to for light machinery due to its balanced performance and ease of maintenance.
