Single Row Deep Groove Ball Bearings 6005-2RSH/C2

Single Row Deep Groove Ball Bearings 6005-2RSH/C2

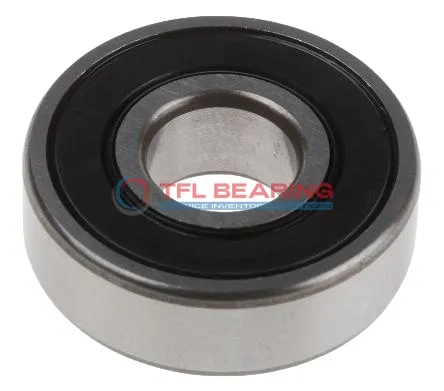

The 6005-2RSH/C2 is a sealed single-row deep groove ball bearing with a 25mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C2 clearance ensures reliable performance under various conditions. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 80g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2RSH/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g
  • price（$） 6.786
Single Row Deep Groove Ball Bearings 6005-2RSH/C2 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6005-2RSH/C2 Bearing

6005-2RSH/C2 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 2271 lbf, making it suitable for various applications.
The sealed design protects against dust and moisture, ensuring reliable operation in different environments.
With a maximum speed of 15,000 rpm, it delivers both durability and high performance.

Application

Common Applications of 6005-2RSH/C2 Bearing
6005-2RSH/C2 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6005-2RSH/C2 Bearing fits well in components such as alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6005-2RSH/C2 Bearing works efficiently in items like washing machines and fans, where smooth operation is essential. The sealed feature also helps prolong its lifespan in everyday use.

In automation systems, 6005-2RSH/C2 Bearing supports robotic arms and small machinery, offering precise movement and low maintenance. The C2 clearance ensures consistent performance even at higher speeds.
