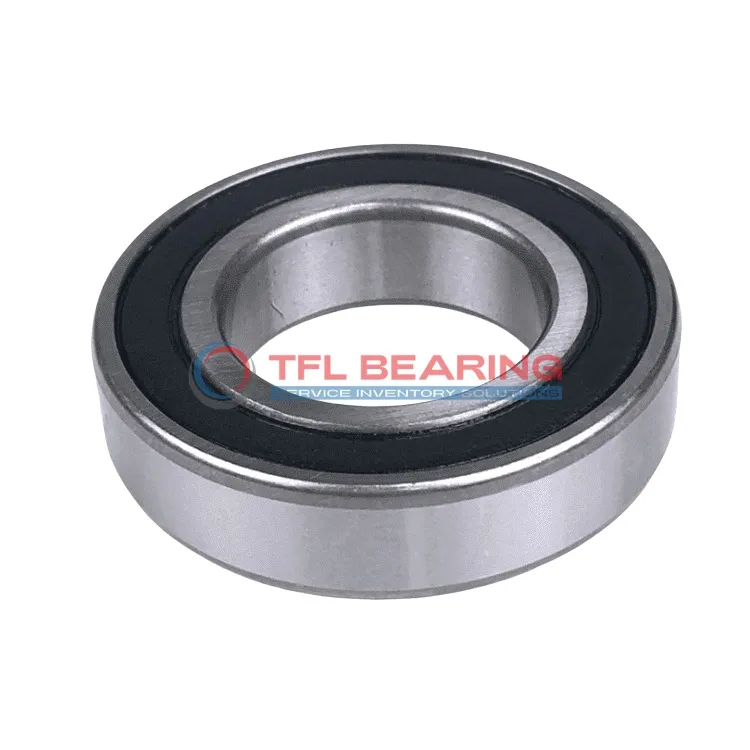

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64

The 6004-2RSH/C3W64 is a sealed single row deep groove ball bearing with a 20mm bore and 42mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2113 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil ensures long-lasting performance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliability is key.

Weighing just 69g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
  • price（$） 8.604
Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 6004-2RSH/C3W64 Bearing for Precision Tasks?

6004-2RSH/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for various industrial uses.
The bearing operates efficiently within a temperature range of -30°C to 120°C, adapting to different working conditions.
With a maximum speed of 17,000 rpm, it delivers reliable performance for high-speed applications.

Application

Common Applications of 6004-2RSH/C3W64 Bearing
6004-2RSH/C3W64 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in demanding environments.

In automotive applications, 6004-2RSH/C3W64 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its C3 clearance allows for slight misalignments, making it adaptable to various vehicle designs.

For home appliances like washing machines and fans, 6004-2RSH/C3W64 Bearing offers quiet and smooth operation. The chrome steel construction ensures durability, even with frequent use.

In automation systems, 6004-2RSH/C3W64 Bearing is a go-to choice for robotic arms and small machinery. Its high-speed capability and sealed protection make it ideal for precision tasks.
