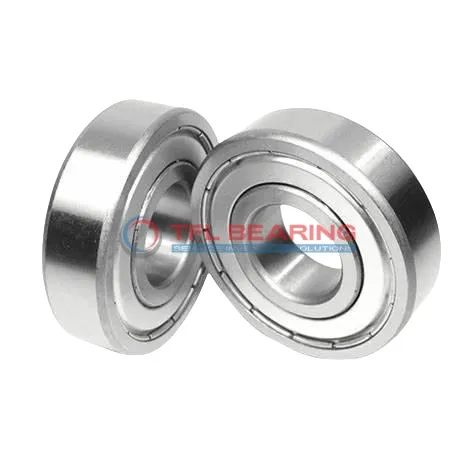

Single Row Deep Groove Ball Bearings 6003-2ZJEM

Single Row Deep Groove Ball Bearings 6003-2ZJEM

The 6003-2ZJEM is a compact single row deep groove ball bearing, measuring 17mm by 35mm by 10mm. Made from durable chrome steel, it handles radial loads up to 1349 lbf and spins smoothly at speeds up to 21,000 RPM.
Its shielded design keeps dust out while maintaining smooth operation. The bearing works well in temperatures from -30°C to 120°C, making it versatile for various conditions.
This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for applications like electric motors or small machinery where reliability is key.
Weighing just 39g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6003-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g
  • price（$） 2.835
Single Row Deep Groove Ball Bearings 6003-2ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6003-2ZJEM Bearing Reduce Friction?

6003-2ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability and consistent performance under stress.

The shielded design protects against contaminants, maintaining efficiency over time.
With a dynamic radial load capacity of 1349 lbf, it handles demanding applications with ease.

6003-2ZJEM Bearing operates quietly, making it suitable for precision machinery.
Its temperature range of -30° to 120°C ensures reliability in varied environments.

Application

Common Applications of 6003-2ZJEM Bearing
6003-2ZJEM Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6003-2ZJEM Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its compact size makes it ideal for space-constrained installations.

For consumer electronics, 6003-2ZJEM Bearing works smoothly in devices like printers and small fans, thanks to its low-noise operation. The ABEC 1 tolerance ensures consistent performance for everyday use.

Automation systems benefit from 6003-2ZJEM Bearing in robotic arms and 3D printers, where precision and reliability are key. The shielded seals help maintain performance in dusty or humid conditions.
