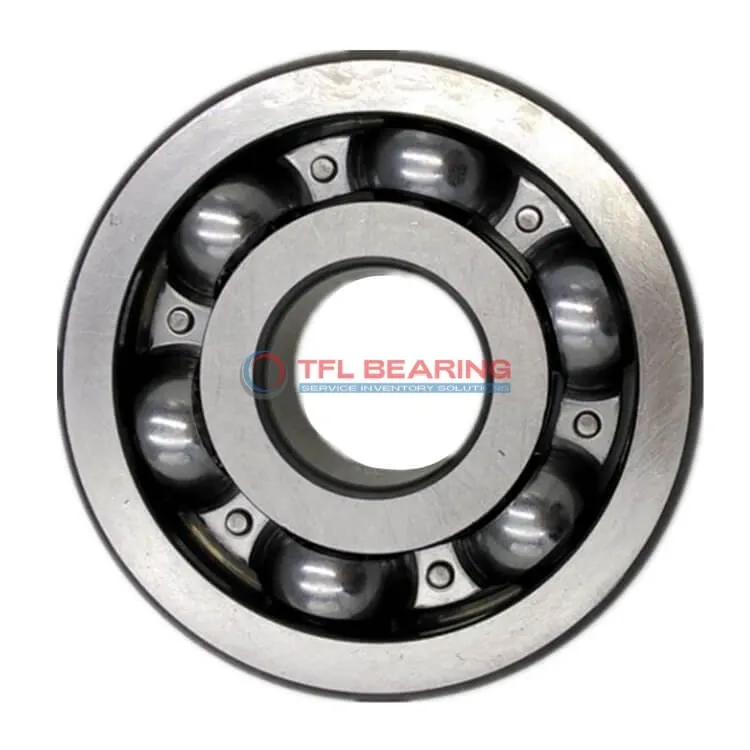

Single Row Deep Groove Ball Bearings 6206 MA/C3S0

Single Row Deep Groove Ball Bearings 6206 MA/C3S0

The 6206 MA/C3S0 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its open design and machined metal cage ensure durability, while the C3 radial clearance allows for thermal expansion. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 199g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206 MA/C3S0
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 31.095
Single Row Deep Groove Ball Bearings 6206 MA/C3S0 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206 MA/C3S0 Bearing

6206 MA/C3S0 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4384 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.
With a maximum speed of 11,000 rpm, it delivers reliable performance in various applications.
The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments up to 150°C.

Application

Common Applications of 6206 MA/C3S0 Bearing
In industrial settings, 6206 MA/C3S0 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding environments.

Where Is 6206 MA/C3S0 Bearing Used?
You’ll often find 6206 MA/C3S0 Bearing in automotive applications like alternators and wheel hubs, thanks to its reliable performance under radial loads. Its C3 clearance also accommodates thermal expansion in high-speed scenarios.

Built for Heavy-Duty Use: 6206 MA/C3S0 Bearing
For conveyor systems and gearboxes, 6206 MA/C3S0 Bearing offers durability with its chrome steel construction. The machined metal cage adds stability, making it suitable for continuous operation.

Automotive vs Industrial: Applications of 6206 MA/C3S0 Bearing
In cars, 6206 MA/C3S0 Bearing handles wheel and transmission loads, while in factories, it supports machinery shafts. Its versatility stems from the balanced radial load capacity and temperature tolerance.

Perfect Fit for Automation: 6206 MA/C3S0 Bearing
Robotic arms and CNC machines benefit from 6206 MA/C3S0 Bearing’s precision and low friction. The ABEC 1 tolerance ensures consistent performance in repetitive motion tasks.
