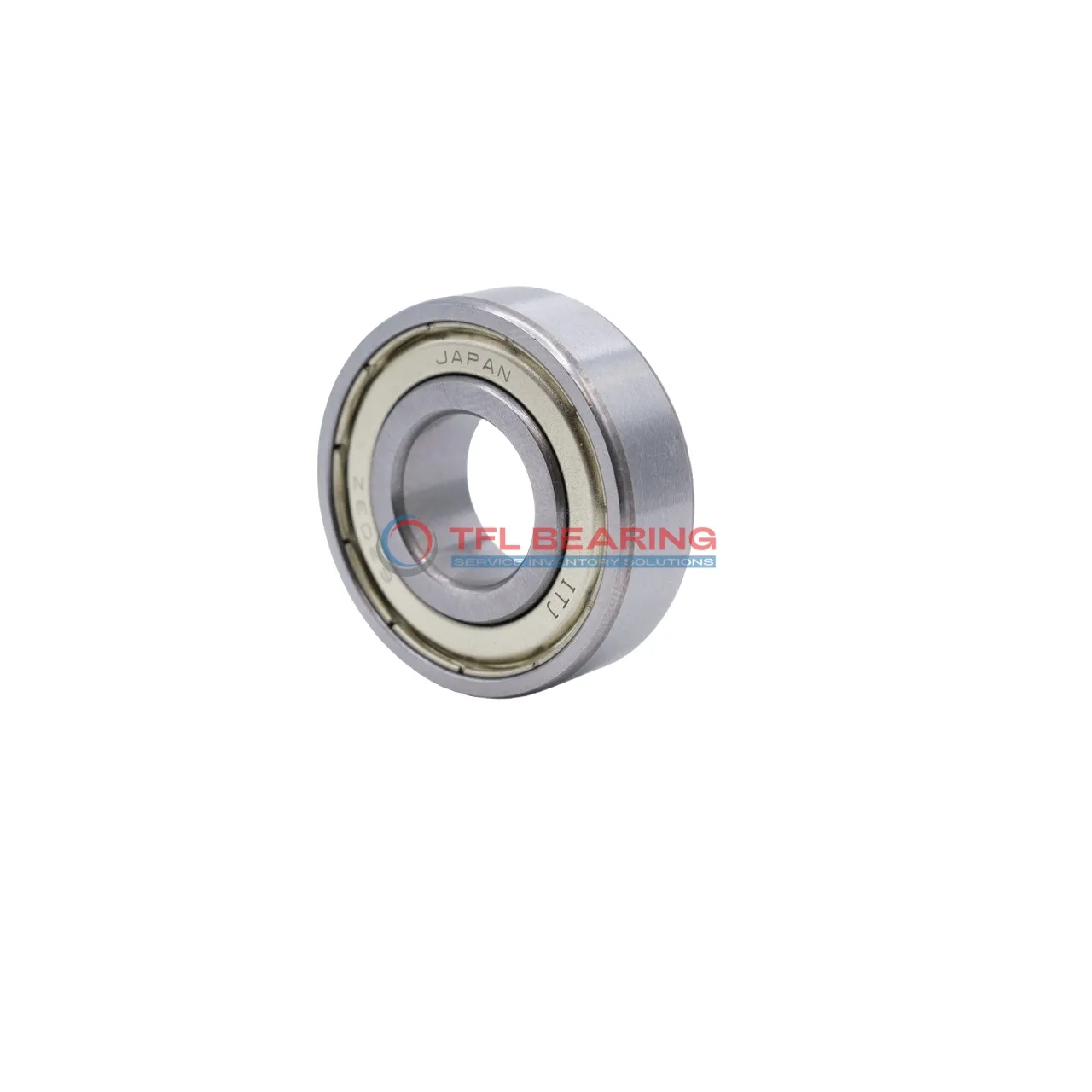

Single Row Deep Groove Ball Bearings 6002-2Z/C3VT127/R806

Single Row Deep Groove Ball Bearings 6002-2Z/C3VT127/R806

The 6002-2Z is a compact single-row deep groove ball bearing, measuring 15mm by 32mm by 9mm. Made from durable chrome steel, it’s designed to handle radial loads up to 1259 lbf with ease.

Its shielded design keeps dirt out while maintaining smooth operation at speeds up to 23,000 RPM. The C3 radial clearance allows for slight misalignment without compromising performance.

This bearing works reliably in temperatures from -30°C to 120°C, making it suitable for various environments. It’s interchangeable with SKF models, offering a cost-effective replacement option.

Ideal for small motors, pumps, or appliances where space is limited but reliability is key. Weighing just 30g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6002-2Z/C3VT127/R806
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 641 lbf
  • Max Speed 23000 rpm
  • Weight 30 g
Single Row Deep Groove Ball Bearings 6002-2Z/C3VT127/R806 dimension drawing
Download DWG Download PDF

Features

How Does 6002-2Z/C3VT127/R806 Bearing Reduce Friction?

6002-2Z/C3VT127/R806 Bearing features a single row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.

The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 23,000 rpm, it offers reliable efficiency for high-speed applications.

The C3 radial clearance provides flexibility, accommodating thermal expansion without compromising performance.
Its compact size (15 mm×32 mm×9 mm) makes it suitable for space-constrained installations.

Application

Common Applications of 6002-2Z/C3VT127/R806 Bearing
6002-2Z/C3VT127/R806 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its shielded design helps keep out dust and debris.

The C3 radial clearance makes it suitable for applications with moderate thermal expansion, ensuring reliable performance in varying temperatures.

Where Is 6002-2Z/C3VT127/R806 Bearing Used?
In automotive applications, 6002-2Z/C3VT127/R806 Bearing can be found in alternators and small gearboxes, providing smooth rotation under radial loads.
Its chrome steel construction offers good durability, making it a cost-effective choice for everyday use.

Built for Versatility: 6002-2Z/C3VT127/R806 Bearing
6002-2Z/C3VT127/R806 Bearing works well in household appliances like washing machines and fans, thanks to its balanced load capacity and quiet operation.
The shielded seals help extend its lifespan by reducing contamination, even in dusty environments.

Automotive vs Industrial: Applications of 6002-2Z/C3VT127/R806 Bearing
In cars, 6002-2Z/C3VT127/R806 Bearing handles radial loads in components like water pumps, while in factories, it supports small machinery shafts.
Its metric sizing and ABEC 1 tolerance make it adaptable to various equipment standards.

How Does 6002-2Z/C3VT127/R806 Bearing Improve Performance?
For light automation systems, 6002-2Z/C3VT127/R806 Bearing reduces friction in robotic joints, ensuring precise movement.
The high-speed capability (up to 23,000 rpm) makes it useful in applications requiring rapid rotation.
