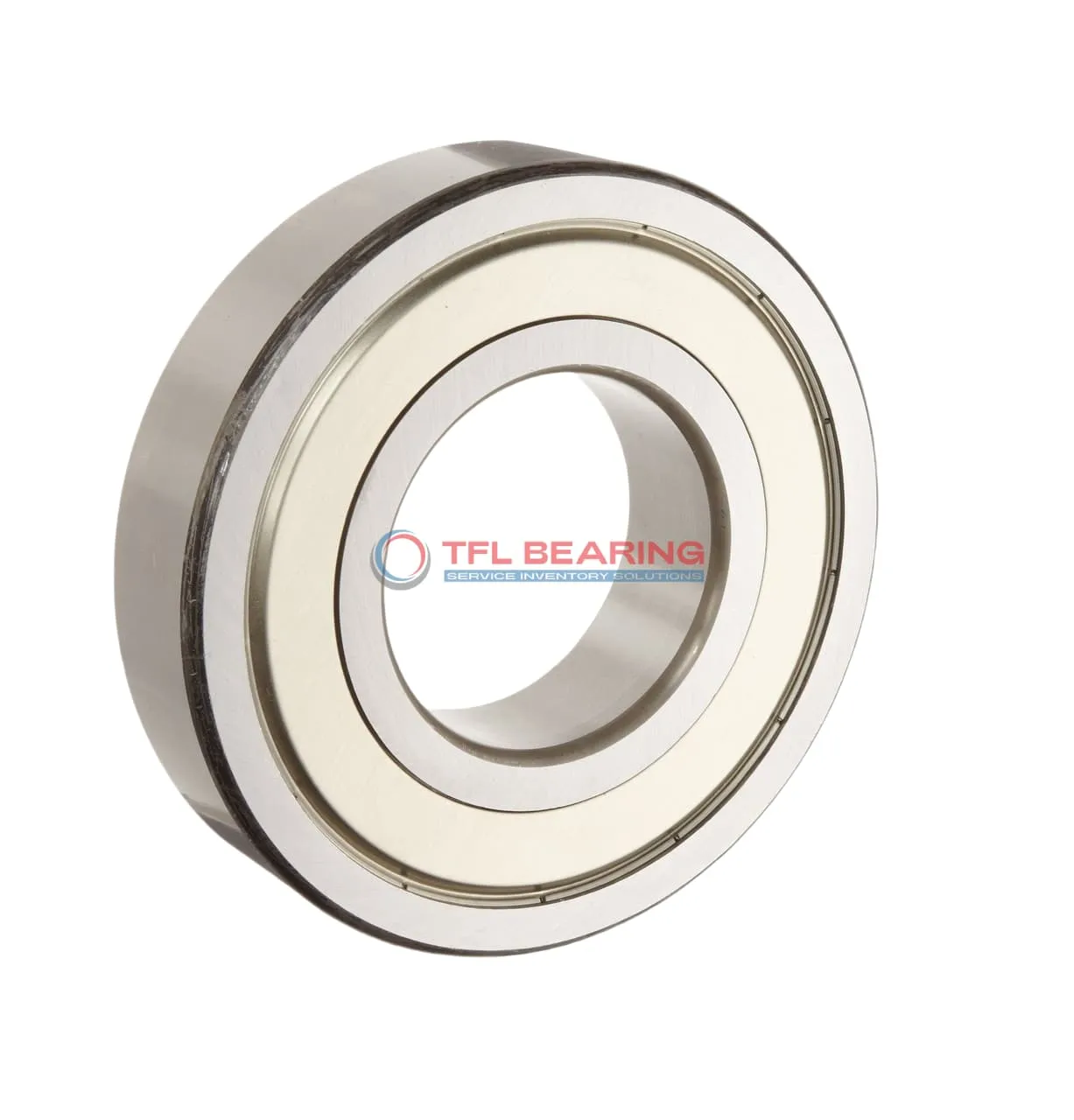

Single Row Deep Groove Ball Bearings 6001-2Z/LHT23

Single Row Deep Groove Ball Bearings 6001-2Z/LHT23

The 6001-2Z/LHT23 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm. Made from durable chrome steel, it’s designed for radial loads up to 1147 lbf and can handle speeds up to 27,000 RPM.

Its shielded design keeps dust out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for small motors, fans, or appliances where reliable radial load support is needed.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2Z/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price（$） 2.574
Single Row Deep Groove Ball Bearings 6001-2Z/LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-2Z/LHT23 Bearing

6001-2Z/LHT23 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.

Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1147 lbf, it performs reliably under various conditions.

The bearing operates efficiently at speeds up to 27,000 rpm, making it suitable for high-speed applications.

Application

Common Applications of 6001-2Z/LHT23 Bearing
In industrial settings, 6001-2Z/LHT23 Bearing is commonly used in small motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6001-2Z/LHT23 Bearing Used?
You’ll often find 6001-2Z/LHT23 Bearing in automotive applications like alternators and small gearboxes. Its compact size and radial load capacity make it a reliable choice for these components.

Ideal for Precision: 6001-2Z/LHT23 Bearing
For medical devices like small lab equipment, 6001-2Z/LHT23 Bearing offers smooth operation thanks to its shielded design. The ABEC 1 tolerance ensures consistent performance in precision applications.

Automotive vs Industrial: Applications of 6001-2Z/LHT23 Bearing
In cars, 6001-2Z/LHT23 Bearing works well in electric window mechanisms, while in factories, it’s suited for conveyor belt rollers. Its versatility stems from the balanced radial load handling and shielded protection.

Practical Applications of 6001-2Z/LHT23 Bearing
Around the home, 6001-2Z/LHT23 Bearing can be found in appliances like washing machines and fans. The shielded design helps extend its lifespan by reducing dust and debris ingress.
