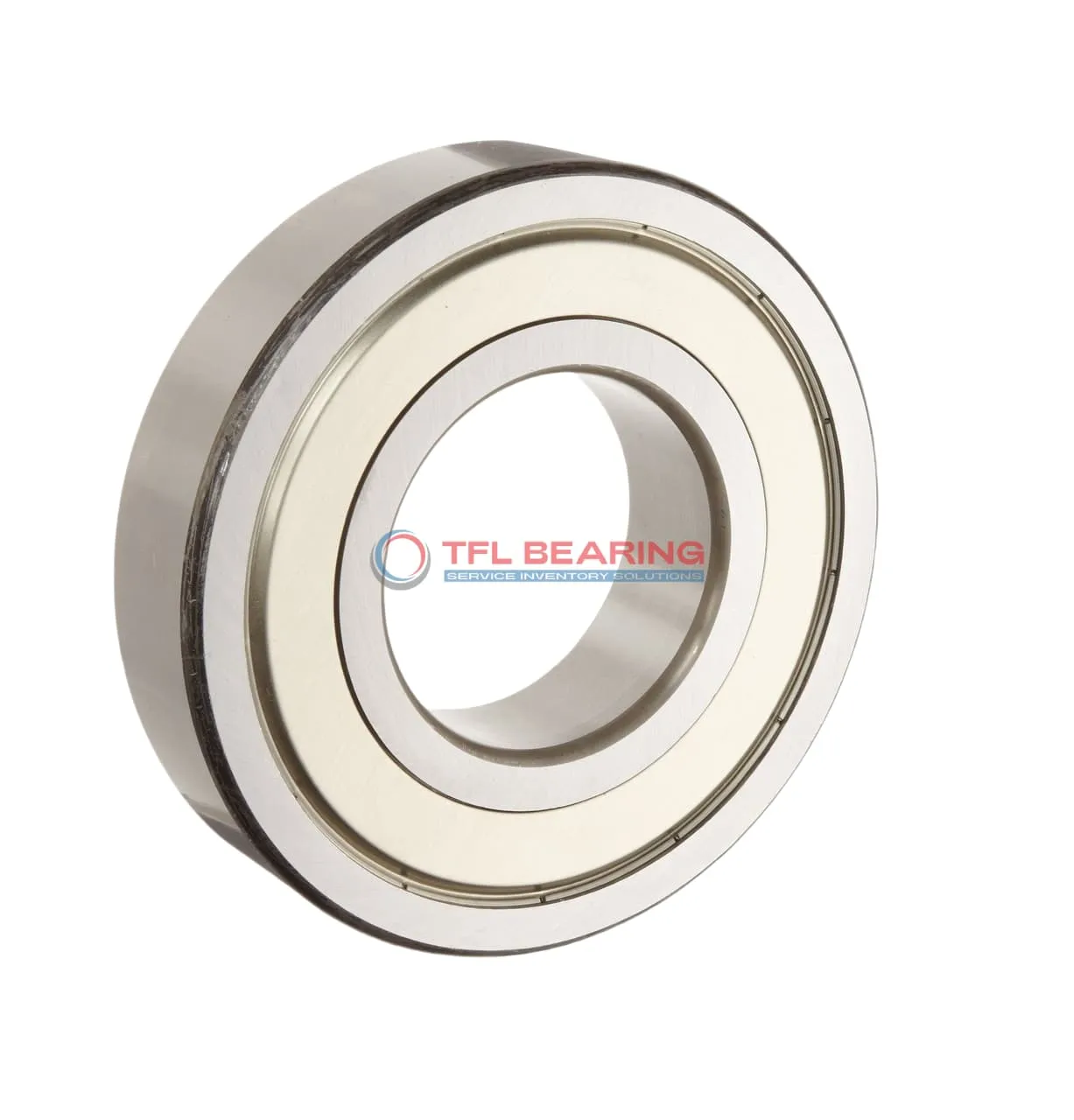

Single Row Deep Groove Ball Bearings 6001-2Z/CNPLHT23

The 6001-2Z/CNPLHT23 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures reliable performance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like small motors or power tools where smooth rotation is key.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6001-2Z/CNPLHT23
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 28 mm
Outer Dia Tolerance -0.009mm to 0
Width 8 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1147 lbf
Static Radial Load 54 lbf
Max Speed 27000 rpm
Weight 22 g

Single Row Deep Groove Ball Bearings 6001-2Z/CNPLHT23 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6001-2Z/CNPLHT23 Bearing

6001-2Z/CNPLHT23 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1147 lbf, ensuring reliable performance in various applications.
The shielded design protects against dust and debris, enhancing durability.
With a maximum speed of 27,000 rpm, it delivers efficient and smooth operation.

Application

Common Applications of 6001-2Z/CNPLHT23 Bearing
In industrial settings, 6001-2Z/CNPLHT23 Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures it can handle moderate radial loads with ease.

Where Is 6001-2Z/CNPLHT23 Bearing Used?
You’ll often find 6001-2Z/CNPLHT23 Bearing in household appliances like washing machines and fans, thanks to its quiet operation and durability. Its compact size makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: 6001-2Z/CNPLHT23 Bearing
6001-2Z/CNPLHT23 Bearing works well in conveyor systems, where its ABEC 1 tolerance provides reliable performance. The shielded seals also help extend its lifespan in dusty environments.

Automotive vs Industrial: Applications of 6001-2Z/CNPLHT23 Bearing
In automotive applications, 6001-2Z/CNPLHT23 Bearing supports components like alternators and idler pulleys. For industrial use, it’s a go-to choice for light machinery due to its balanced load capacity.
