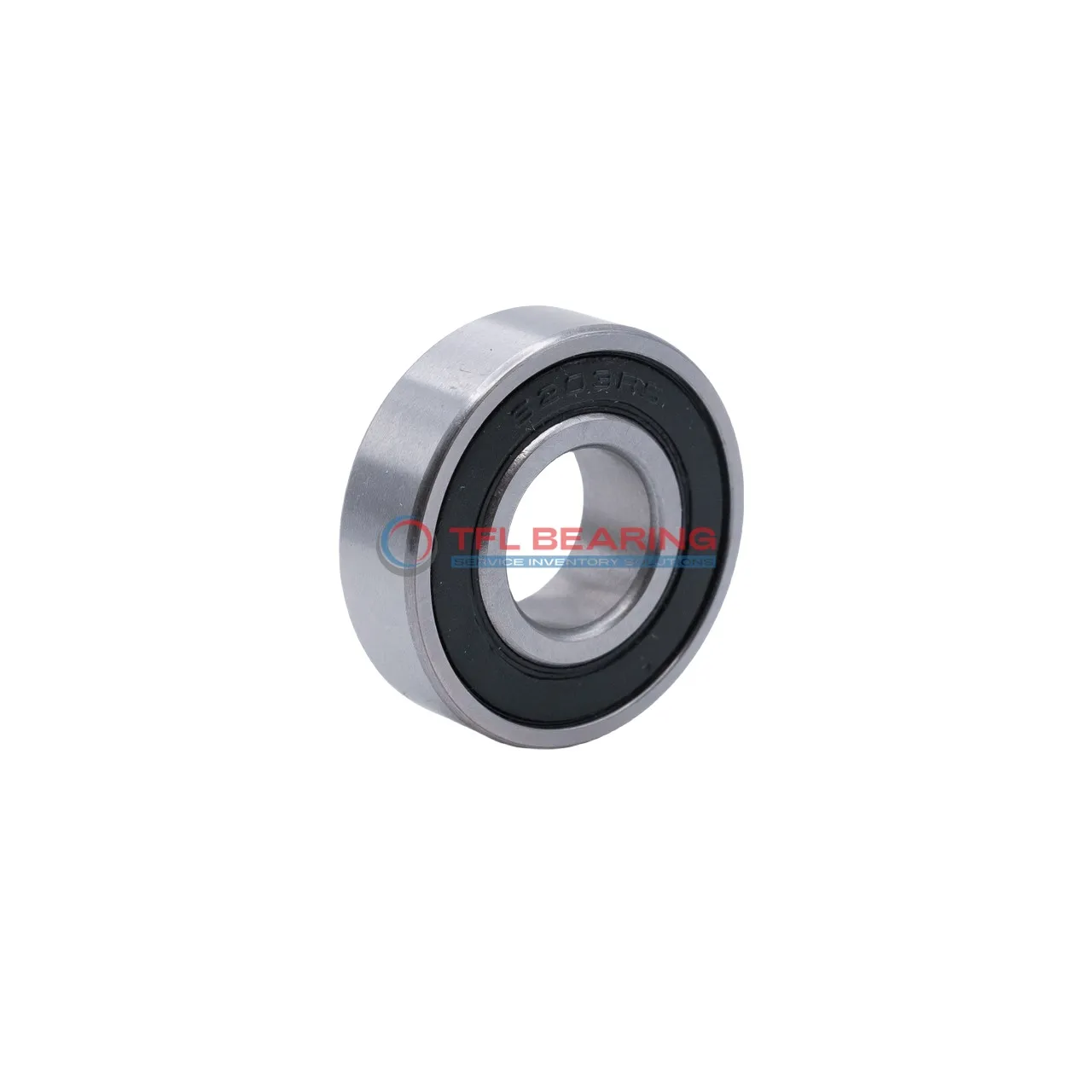

Single Row Deep Groove Ball Bearings 6000-2RSL

Single Row Deep Groove Ball Bearings 6000-2RSL

The 6000-2RSL is a compact single-row deep groove ball bearing with a 10mm bore and 26mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1068 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for small motors, pumps, or appliances where space is tight but performance matters.

Weighing just 0.019kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RSL
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1068 lbf
  • Static Radial Load 441 lbf
  • Max Speed 34000 rpm
  • Weight 0.019 kg
  • price（$） 3.456
Single Row Deep Groove Ball Bearings 6000-2RSL dimension drawing
Download DWG Download PDF

Features

Why Choose 6000-2RSL Bearing for Precision Tasks?

6000-2RSL Bearing features sealed construction, protecting against contaminants and ensuring smooth operation.
Its chrome steel rings and balls provide reliable performance under radial loads up to 1068 lbf.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 34,000 rpm, it is suitable for high-speed applications.

6000-2RSL Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its compact size (10 mm×26 mm×8 mm) makes it ideal for space-constrained installations.

Application

Common Applications of 6000-2RSL Bearing
6000-2RSL Bearing is widely used in small electric motors, thanks to its sealed design that keeps dust and moisture out. This makes it ideal for appliances like fans and power tools where reliability is key.

In automotive applications, 6000-2RSL Bearing fits well in components like alternators and water pumps. Its grease lubrication ensures smooth operation even under continuous use.

For automation systems, 6000-2RSL Bearing works efficiently in robotic arms and conveyor belts. The chrome steel construction offers durability, while the sealed design reduces maintenance needs.

In household devices, 6000-2RSL Bearing is a common choice for printers and small appliances. Its compact size and reliable performance make it a practical option for everyday use.
