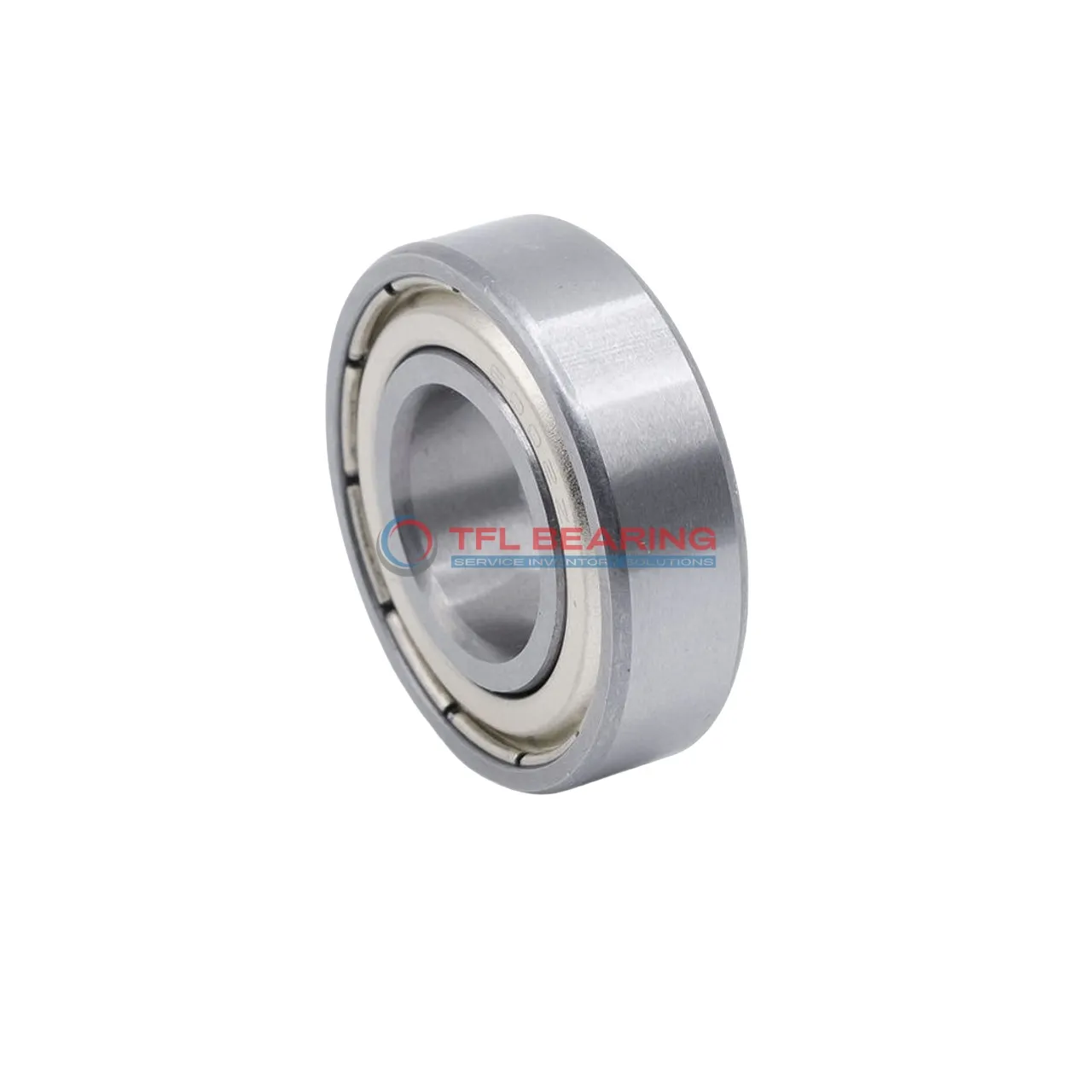

Single Row Deep Groove Ball Bearings 306SZZST

Single Row Deep Groove Ball Bearings 306SZZST

The 306SZZST is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6677 lbf and operates smoothly at speeds up to 11000 RPM.

Its shielded design keeps dirt out while maintaining smooth rotation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or conveyor systems where radial loads are common.

Weighing 0.37kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 306SZZST
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6677 lbf
  • Static Radial Load 4856 lbf
  • Max Speed 11000 rpm
  • Weight 0.37 kg
Single Row Deep Groove Ball Bearings 306SZZST dimension drawing
Download DWG Download PDF

Features

How Does 306SZZST Bearing Reduce Friction?

306SZZST Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

Its shielded design protects against contaminants, maintaining consistent performance in various environments.
With a maximum speed of 11,000 rpm, it delivers reliable efficiency for high-speed applications.

The ABEC 1 tolerance class guarantees precise alignment, reducing wear and extending service life.
306SZZST Bearing operates in temperatures from -30°C to 120°C, suitable for diverse industrial conditions.

Application

Industrial Uses of 306SZZST Bearing
306SZZST Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against contaminants. The chrome steel construction ensures durability in demanding environments.

What Makes 306SZZST Bearing a Preferred Choice?
In automotive applications, 306SZZST Bearing fits well in alternators and wheel hubs, offering reliable radial load support. Its ABEC 1 tolerance balances performance and cost for everyday use.

Perfect Fit for Automation: 306SZZST Bearing
306SZZST Bearing works smoothly in robotic arms and conveyor systems, thanks to its consistent performance. The metric sizing makes it easy to integrate into various automated setups.

Medical vs Industrial: Where 306SZZST Bearing Excels
306SZZST Bearing is suitable for medical devices like centrifuges, where precision matters. In industrial settings, it handles radial loads in gearboxes and fans with ease.

Essential Roles of 306SZZST Bearing
For household appliances like washing machines, 306SZZST Bearing provides quiet and efficient operation. Its shielded seals keep dust out, extending the bearing’s lifespan.
