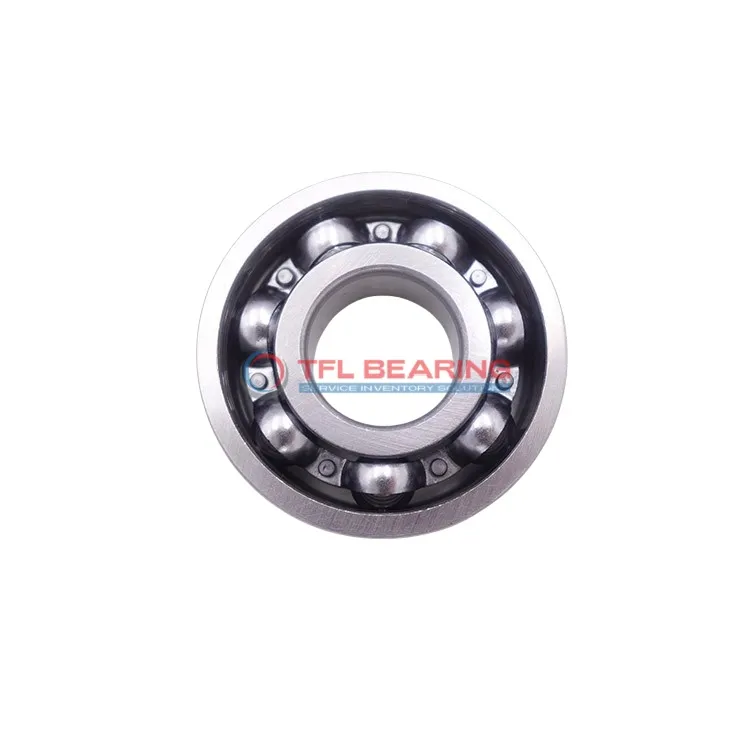

Single Row Deep Groove Ball Bearings 217SFF

Single Row Deep Groove Ball Bearings 217SFF

The 217SFF is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21762 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1.95kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 217SFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 21762 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 4800 rpm
  • Weight 1.95 kg
  • price（$） 38.322
Single Row Deep Groove Ball Bearings 217SFF dimension drawing
Download DWG Download PDF

Features

Performance Features of 217SFF Bearing

217SFF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 21762 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 4,800 rpm, it balances durability and efficiency.

217SFF Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open seal design simplifies maintenance while maintaining performance.

Application

Industrial Uses of 217SFF Bearing
217SFF Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, making it suitable for high-speed applications.

Where Is 217SFF Bearing Used?
You’ll often find 217SFF Bearing in automotive systems such as wheel hubs and transmissions, where its durability handles constant radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 217SFF Bearing
217SFF Bearing works well in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. The ABEC 1 tolerance ensures consistent performance in demanding environments.

Automotive vs Industrial: Applications of 217SFF Bearing
In automotive applications, 217SFF Bearing supports smooth rotation in drivetrains, while in industrial settings, it excels in gearboxes and compressors. Its wide temperature range makes it adaptable to different working conditions.

Perfect Fit for Automation: 217SFF Bearing
217SFF Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and durability are key. The chrome steel cage enhances its longevity even in continuous operation.
