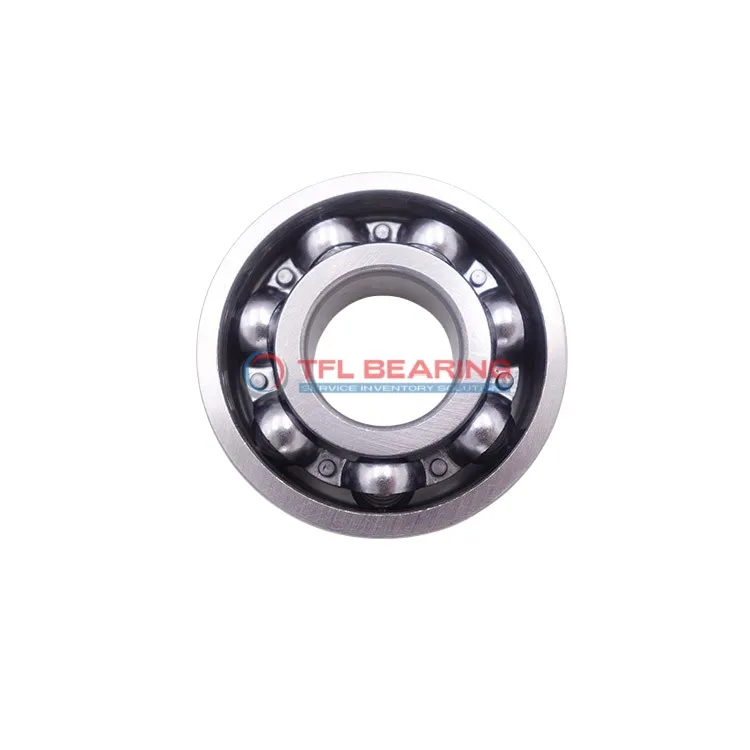

Single Row Deep Groove Ball Bearings 217S

Single Row Deep Groove Ball Bearings 217S

The 217S is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21762 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are common.

Weighing 1.95kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 217S
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 21762 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 4800 rpm
  • Weight 1.95 kg
  • price（$） 33.129
Single Row Deep Groove Ball Bearings 217S dimension drawing
Download DWG Download PDF

Features

Performance Features of 217S Bearing

217S Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 21762 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 4,800 rpm, it balances durability and efficiency.

217S Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open seal design allows for easy maintenance and lubrication.

Application

Common Applications of 217S Bearing
217S Bearing is widely used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads effectively. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 217S Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding conditions.

For home appliances like washing machines, 217S Bearing offers smooth operation and low noise. The metric sizing makes it a versatile choice for various European and Asian models.

Where Is 217S Bearing Used?
You’ll often find 217S Bearing in conveyor systems, where its radial load capacity keeps things running smoothly. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

In agricultural equipment, 217S Bearing handles the rough conditions of harvesters and tractors. Its robust design and chrome steel components make it a dependable option for heavy-duty use.

Built for Heavy-Duty Use: 217S Bearing
217S Bearing excels in construction machinery, supporting radial loads in cranes and excavators. The wide temperature range means it performs reliably in both hot and cold environments.

For industrial fans, 217S Bearing’s low-maintenance design reduces downtime. The open seal allows for easy inspection and lubrication, keeping operations efficient.

Automotive vs Aerospace: Applications of 217S Bearing
In cars, 217S Bearing is commonly used in drivetrains, where its radial load capacity ensures smooth power transfer. The chrome steel construction resists wear over long periods.

For aerospace ground equipment, 217S Bearing provides reliable performance in load-handling systems. Its metric sizing and ABEC 1 tolerance make it a practical choice for precision applications.
