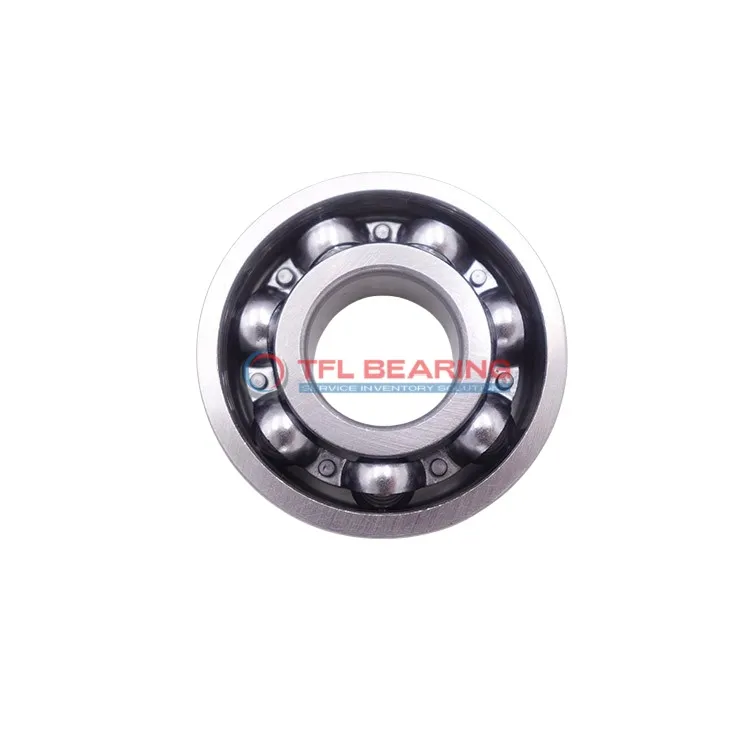

Single Row Deep Groove Ball Bearings 217M

Single Row Deep Groove Ball Bearings 217M

The 217M is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 21762 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.95kg, it offers a robust build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 217M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 21762 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 4800 rpm
  • Weight 1.95 kg
  • price（$） 63.954
Single Row Deep Groove Ball Bearings 217M dimension drawing
Download DWG Download PDF

Features

Performance Features of 217M Bearing

217M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 21762 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 4,800 rpm, it balances durability and efficiency.

217M Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication and maintenance.

Application

Industrial Uses of 217M Bearing
217M Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for high-speed applications.

Where Is 217M Bearing Used?
In automotive systems, 217M Bearing fits well in wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle models.

Perfect Fit for Automation: 217M Bearing
For automation equipment, 217M Bearing provides reliable performance in robotic arms and conveyor systems. The ABEC 1 tolerance ensures consistent precision in repetitive tasks.

Medical vs Industrial: Where 217M Bearing Excels
In medical devices, 217M Bearing offers stability in imaging equipment, while in industrial settings, it handles heavy loads in gearboxes. Its temperature range makes it versatile for different environments.

Key Fields for 217M Bearing
217M Bearing is ideal for household appliances like washing machines, where its quiet operation and durability are valued. The chrome steel cage enhances longevity even with frequent use.
