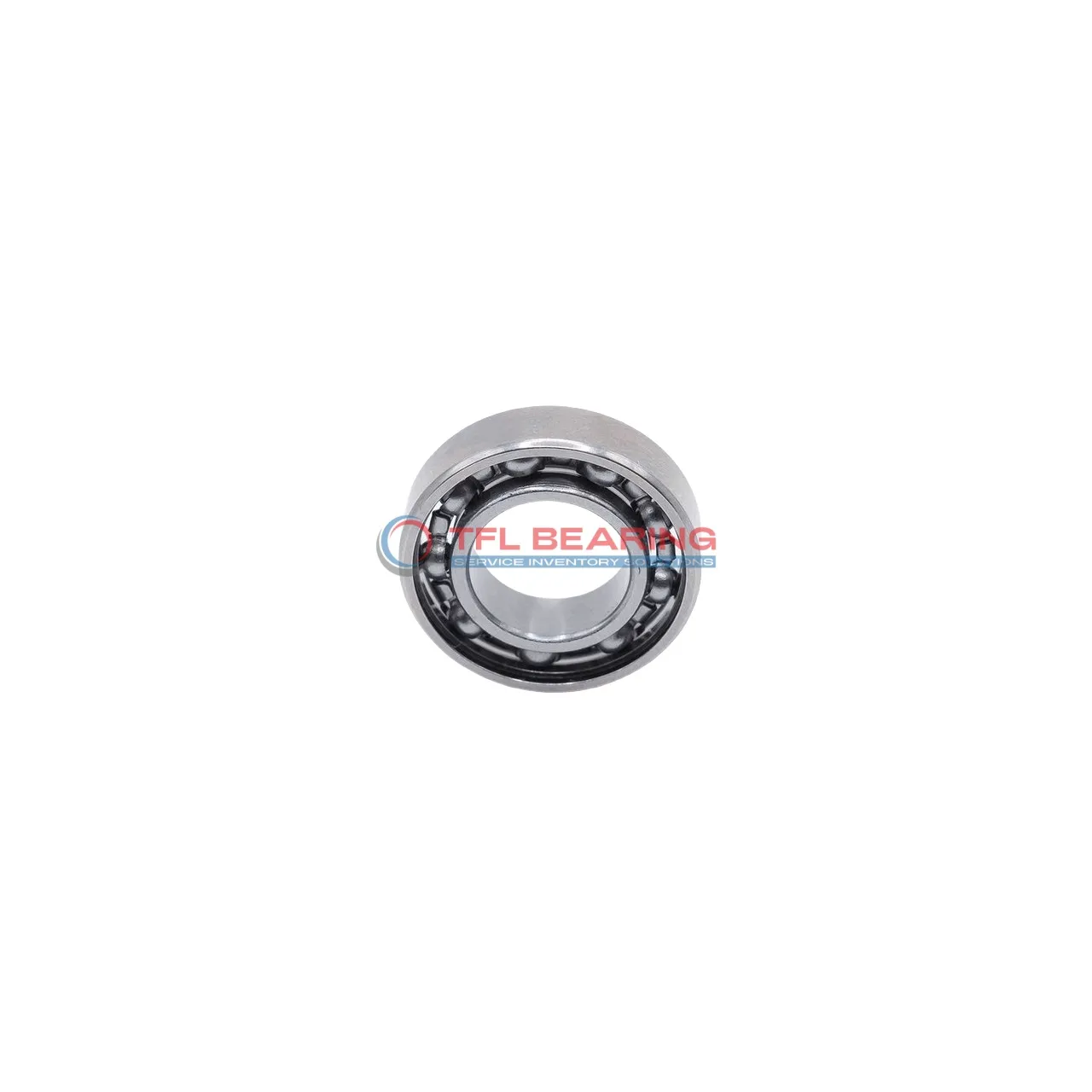

Single Row Deep Groove Ball Bearings 209SFFCG

Single Row Deep Groove Ball Bearings 209SFFCG

The 209SFFCG is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7913 lbf and operates smoothly at speeds up to 8500 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.44kg, it balances strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 209SFFCG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7913 lbf
  • Static Radial Load 6744 lbf
  • Max Speed 8500 rpm
  • Weight 0.44 kg
  • price（$） 87.822
Single Row Deep Groove Ball Bearings 209SFFCG dimension drawing
Download DWG Download PDF

Features

Performance Features of 209SFFCG Bearing

209SFFCG Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7913 lbf, ensuring reliable performance in various applications.
The open seal type allows for easy maintenance and inspection, simplifying upkeep.
With a maximum speed of 8,500 rpm, it balances durability and efficiency.

Application

Industrial Uses of 209SFFCG Bearing
209SFFCG Bearing is commonly used in machine tools, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

What Makes 209SFFCG Bearing a Preferred Choice?
In automotive applications like electric motors, 209SFFCG Bearing provides reliable performance due to its chrome steel construction. Its ABEC 1 tolerance ensures smooth operation in various driving conditions.

Perfect Fit for Automation: 209SFFCG Bearing
This bearing works well in robotic arms, offering stability and durability for repetitive movements. The metric sizing makes it compatible with a wide range of automated systems.

Medical vs Industrial: Where 209SFFCG Bearing Excels
In medical imaging devices, 209SFFCG Bearing’s precision is crucial for accurate results. Meanwhile, in industrial fans, its robust design ensures long-lasting performance under continuous use.
