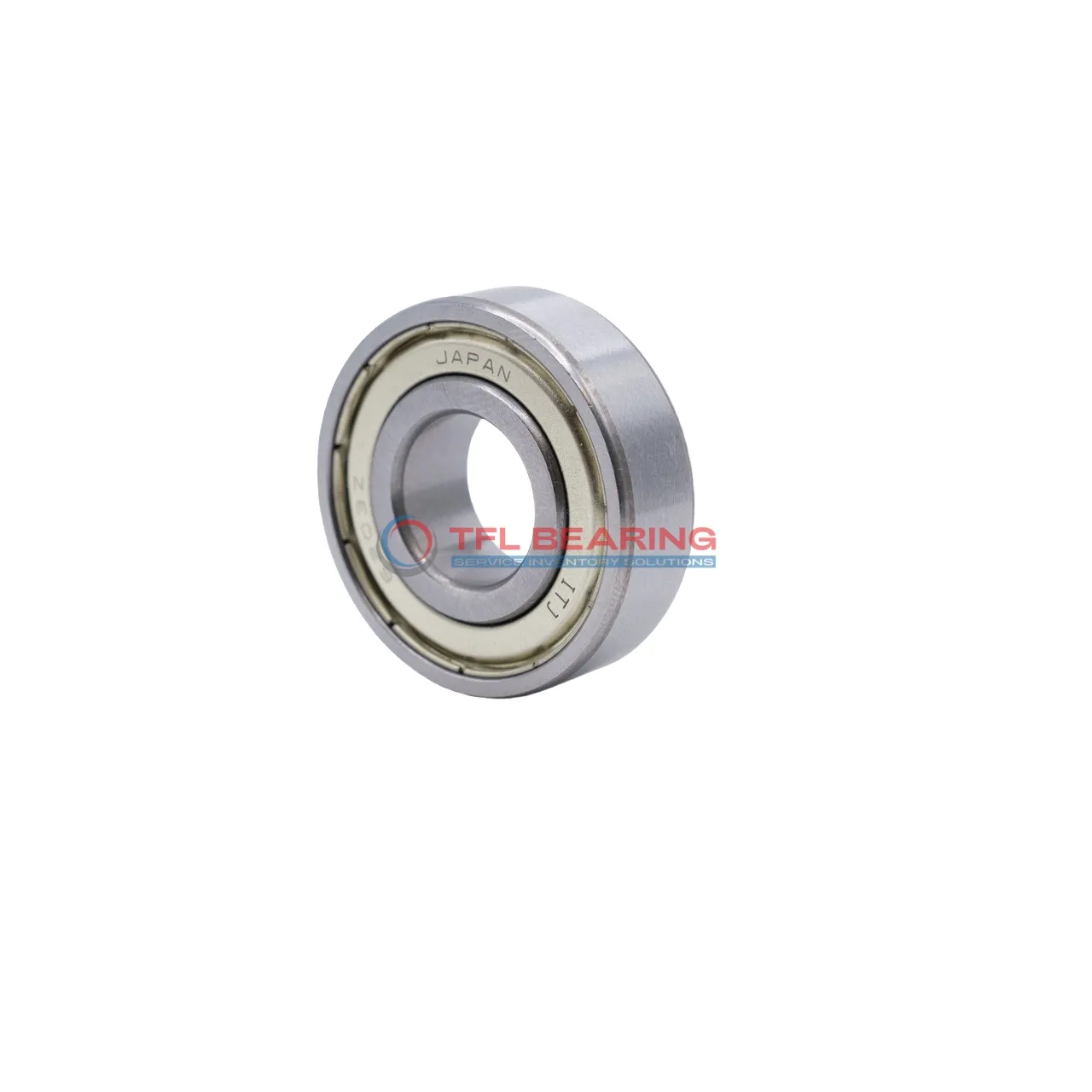

Single Row Deep Groove Ball Bearings 206SZZ

The 206SZZ is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4699 lbf and spins smoothly at speeds up to 12,000 RPM.

Shielded on both sides, it keeps dirt out while maintaining smooth operation. The chrome steel cage adds durability, making it a reliable choice for various applications.

This bearing works well in temperatures from -30°C to 120°C, suitable for diverse environments. It’s interchangeable with SKF bearings, offering flexibility for replacements.

Ideal for electric motors, pumps, or machinery where radial loads are common. Weighing just 0.21kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 206SZZ
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 30 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 16 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 4699 lbf
Static Radial Load 3664 lbf
Max Speed 12000 rpm
Weight 0.21 kg
price（$） 4.068

Single Row Deep Groove Ball Bearings 206SZZ dimension drawing

Download DWG Download PDF

Features

Performance Features of 206SZZ Bearing

206SZZ Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4699 lbf.
Its shielded design provides protection against dust and contaminants, ensuring smooth operation.
With a maximum speed of 12,000 rpm, it delivers reliable performance in various applications.
The ABEC 1 tolerance class ensures consistent precision for everyday use.

How Does 206SZZ Bearing Reduce Friction?

206SZZ Bearing’s deep groove design minimises friction, allowing for smooth rotation under radial loads.
The chrome steel construction enhances durability while maintaining low resistance.
Its shielded seals help retain lubrication, further reducing wear over time.
This combination ensures efficient operation with minimal energy loss.

Designed for Durability: 206SZZ Bearing

206SZZ Bearing features a robust single-row construction with chrome steel components for long-lasting performance.
It withstands temperatures from -30° to 120°C, making it suitable for various environments.
The bearing’s CN radial clearance provides optimal balance between precision and durability.
With static radial load capacity of 3664 lbf, it handles demanding applications reliably.

Application

Common Applications of 206SZZ Bearing
206SZZ Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its shielded design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 206SZZ Bearing fits well in components such as alternators and water pumps, providing smooth radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 206SZZ Bearing works efficiently in items like washing machines and fans, thanks to its balanced performance and low maintenance needs. The ABEC 1 tolerance ensures reliable operation without unnecessary complexity.

Automation systems benefit from 206SZZ Bearing in robotic arms and small machinery, where precision and longevity are key. The shielded seals help maintain performance even in high-speed scenarios.

Medical devices like lab equipment often use 206SZZ Bearing for its consistent performance and resistance to wear. The temperature range makes it suitable for both sterile and industrial settings.
