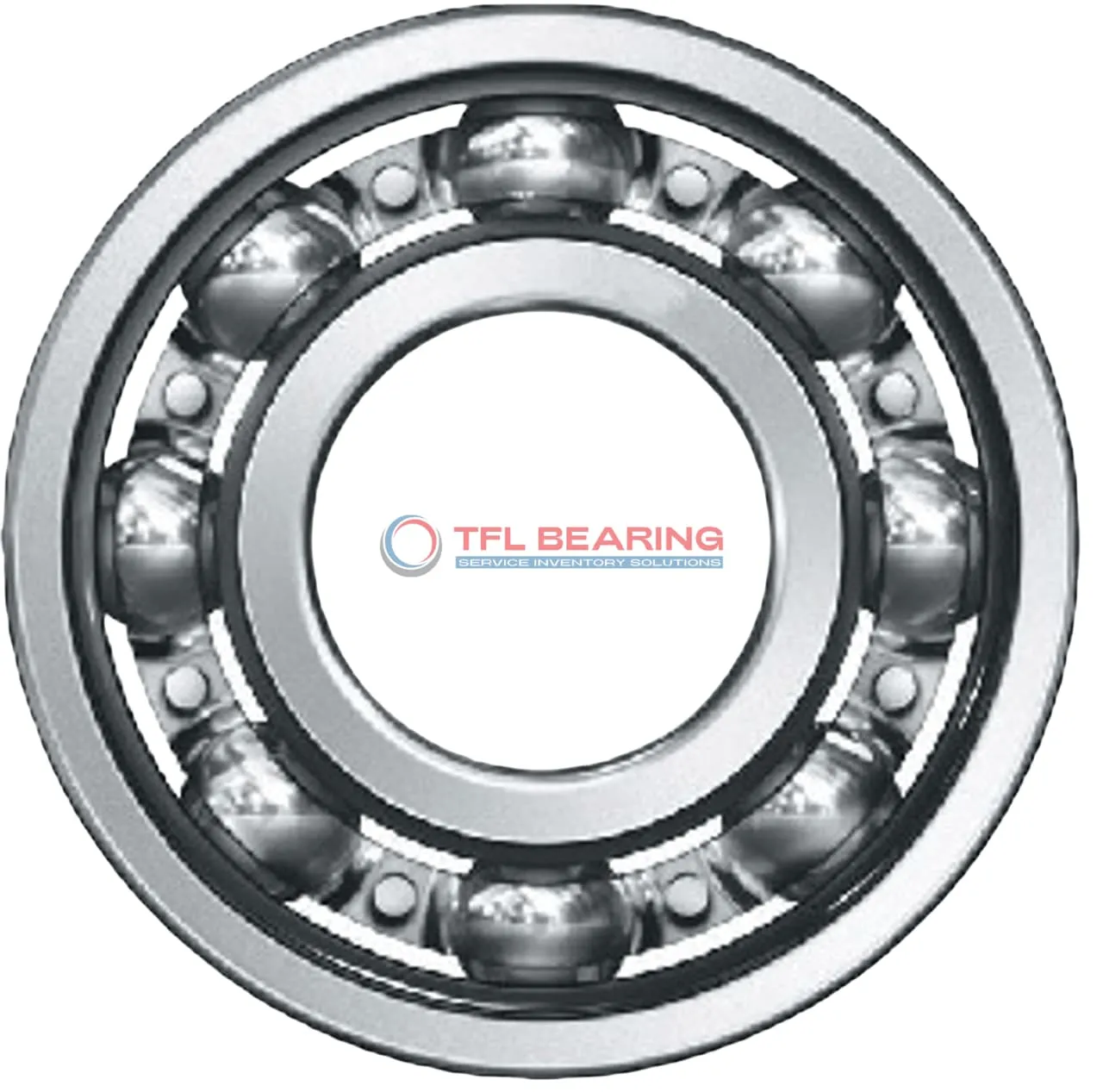

Single Row Deep Groove Ball Bearings 16072 MA

Single Row Deep Groove Ball Bearings 16072 MA

The 16072 MA is a single-row deep groove ball bearing with a 360mm bore and 540mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 78,908 lbf and operates at speeds up to 1400 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 49kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16072 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 57 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 78908 lbf
  • Static Radial Load 123645 lbf
  • Max Speed 1400 rpm
  • Weight 49000 g
  • price（$） 2166.867
Single Row Deep Groove Ball Bearings 16072 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16072 MA Bearing

16072 MA Bearing is crafted with chrome steel rings and balls, ensuring strong radial load capacity up to 123645 lbf.
Its stainless steel cage maintains ball alignment, reducing friction and wear for smoother operation.

The single-row deep groove design enhances radial load handling, making it suitable for various industrial applications.
With a maximum speed of 1,400 rpm, it balances performance and durability in demanding conditions.

16072 MA Bearing operates efficiently within a temperature range of -30° to 120°C, adapting to diverse environments.
Its P6 tolerance class ensures precision, while the open seal design simplifies maintenance and inspection.

Application

Industrial Uses of 16072 MA Bearing
The 16072 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 16072 MA Bearing supports components like wheel hubs and transmissions, providing smooth operation under radial loads. The metric sizing ensures compatibility with a variety of vehicle models.

For automation systems, 16072 MA Bearing’s chrome steel construction offers durability in robotic arms and conveyor belts. The stainless steel cage enhances its longevity in continuous-use scenarios.

Where Is 16072 MA Bearing Used?
You’ll often find 16072 MA Bearing in wind turbines, where its ability to handle radial loads is essential for efficient energy generation. The P6 tolerance class ensures precision in these demanding applications.

In construction equipment, 16072 MA Bearing provides stability in cranes and excavators, thanks to its high static radial load capacity. Its wide temperature range makes it adaptable to various working conditions.

Built for Heavy-Duty Use: 16072 MA Bearing
The 16072 MA Bearing excels in mining machinery, where its robust design withstands harsh conditions. Its large bore diameter makes it ideal for heavy shafts and rotating parts.

In agricultural equipment, 16072 MA Bearing ensures smooth operation in tractors and harvesters. The chrome steel rings and balls offer excellent resistance to wear and tear.

Automotive vs Aerospace: Applications of 16072 MA Bearing
In automotive systems, 16072 MA Bearing is used in gearboxes and drivetrains, where its radial load capacity is crucial. The aerospace industry relies on it for landing gear systems, thanks to its precision and durability.

For industrial fans, 16072 MA Bearing provides reliable performance in high-speed operations. Its compatibility with various lubrication methods makes it versatile for different applications.
