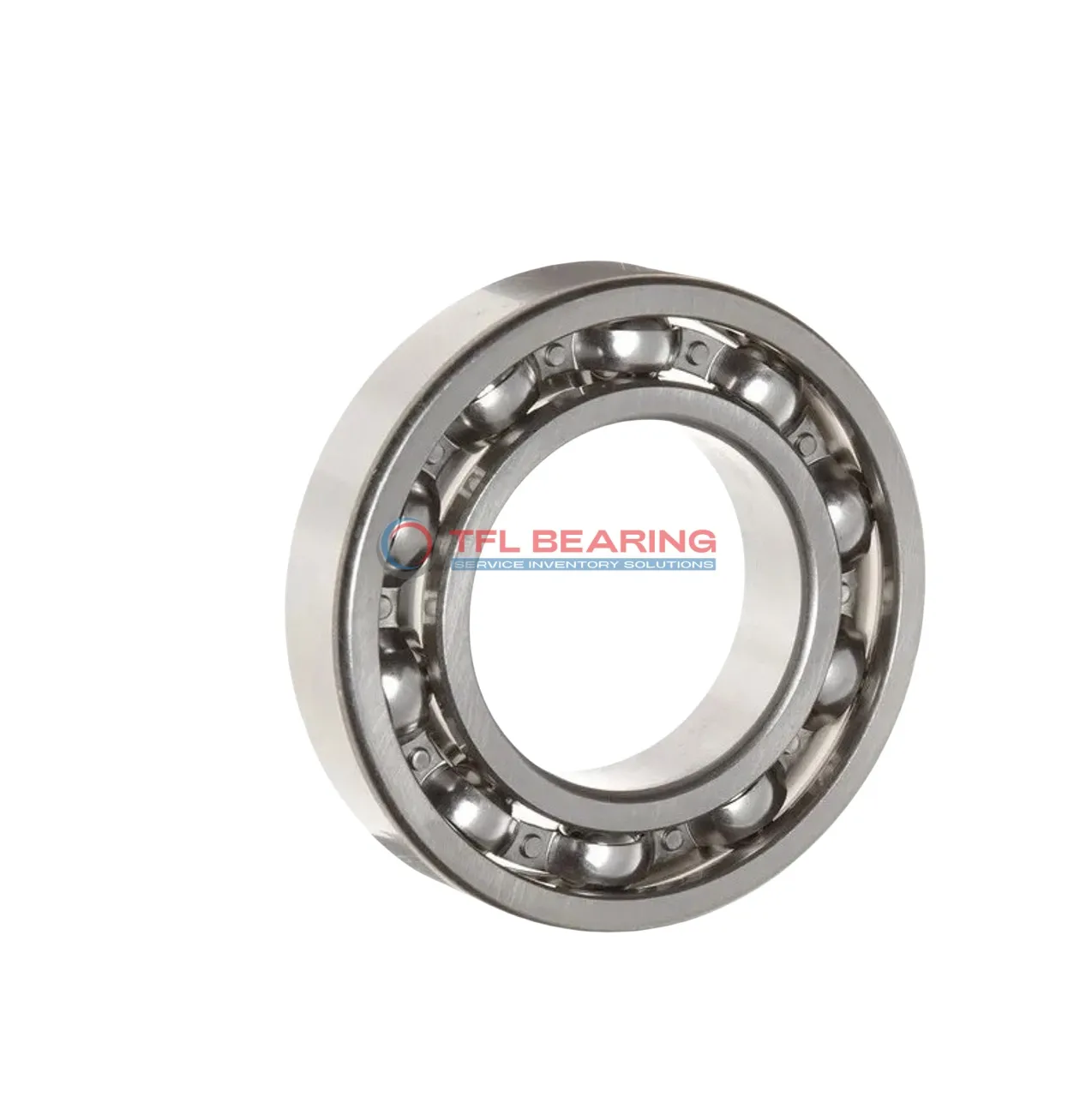

Single Row Deep Groove Ball Bearings 16064 MA/C3

Single Row Deep Groove Ball Bearings 16064 MA/C3

The 16064 MA/C3 is a single-row deep groove ball bearing with a 320mm bore and 480mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 63171 lbf and operates smoothly at speeds up to 1700 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 34kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16064 MA/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 50 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 63171 lbf
  • Static Radial Load 91048 lbf
  • Max Speed 1700 rpm
  • Weight 34000 g
  • price（$） 1595.772
Single Row Deep Groove Ball Bearings 16064 MA/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16064 MA/C3 Bearing

16064 MA/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 63171 lbf.
Its machined metal cage ensures precise ball alignment, reducing friction and wear.

The C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
With a maximum speed of 1,700 rpm, it balances performance and durability.

16064 MA/C3 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance, while the ABEC 1 tolerance ensures reliable precision.

Application

Industrial Uses of 16064 MA/C3 Bearing
The 16064 MA/C3 Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable operation. Its open design and C3 clearance make it suitable for applications with thermal expansion or misalignment.

In automotive applications, 16064 MA/C3 Bearing supports components like large gearboxes or drivetrains, handling high radial loads with ease. The chrome steel construction provides durability, even under demanding conditions.

For automation systems, 16064 MA/C3 Bearing is ideal for robotic arms or conveyor systems, where smooth rotation is essential. The machined metal cage enhances stability, reducing vibration during high-speed operations.

Where Is 16064 MA/C3 Bearing Used?
You’ll often find 16064 MA/C3 Bearing in wind turbines, where its large size and radial load capacity handle the stresses of rotational movement. The C3 clearance also accommodates thermal changes in outdoor environments.

In construction equipment, 16064 MA/C3 Bearing is a reliable choice for cranes or excavators, thanks to its robust design. The high static radial load rating ensures longevity, even in heavy-load scenarios.

Built for Heavy-Duty Use: 16064 MA/C3 Bearing
The 16064 MA/C3 Bearing excels in mining equipment, where its durability and load capacity are put to the test. The open design allows for easy lubrication, extending service life in harsh conditions.

For agricultural machinery, 16064 MA/C3 Bearing supports components like harvesters or tractors, providing consistent performance. Its temperature range makes it adaptable to various working environments.
