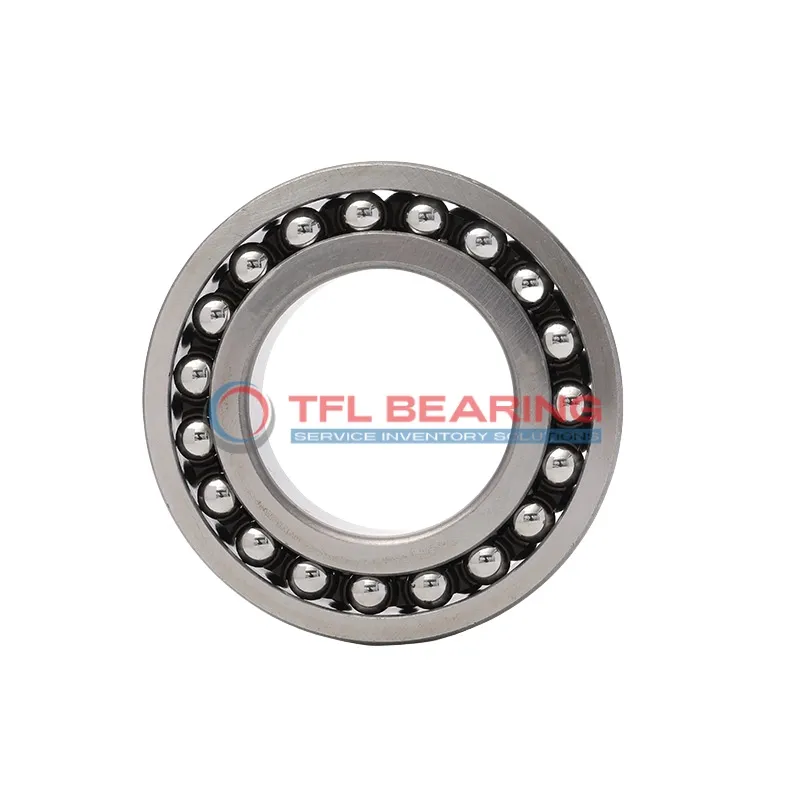

Self Aligning Ball Bearings 1206-K

Self Aligning Ball Bearings 1206-K

The 1206-K is a self-aligning ball bearing with a 30mm tapered bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and reaches speeds of 15,000 RPM smoothly.

Its double-row design and open seal allow for slight misalignment, while the nylon cage reduces friction. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where alignment adjustments are needed, like conveyor systems or agricultural equipment.

Weighing 0.22kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1206-K
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 40.3 mm
  • Internal Diameter On Outer Ring 51.9 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.22 kg
  • Price（$） 17.91
Self Aligning Ball Bearings 1206-K dimension drawing
Download DWG Download PDF

Features

Why Choose 1206-K Bearing for Precision Tasks?

1206-K Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3510 lbf makes it suitable for high-performance applications.

The nylon cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 15,000 rpm, it offers both speed and reliability.

1206-K Bearing’s tapered bore design simplifies installation and enhances alignment accuracy.
Its open seal type allows for easy lubrication, ensuring smooth performance over time.

The bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its compliant RoHS and REACH status ensures it meets environmental and safety standards.

Application

Ideal for Precision: 1206-K Bearing
The 1206-K Bearing is commonly used in industrial machinery where radial load handling and self-alignment are key, such as conveyor systems and textile equipment. Its double-row design ensures stability even in misaligned conditions.

How Does 1206-K Bearing Improve Performance?
In automotive applications, 1206-K Bearing supports components like steering columns and drive shafts, thanks to its tapered bore for secure fitting. The nylon cage reduces friction, enhancing longevity in high-speed scenarios.

Medical vs Industrial: Where 1206-K Bearing Excels
For medical devices like centrifuges, 1206-K Bearing’s chrome steel construction offers reliable performance under consistent radial loads. Its open design allows for easy lubrication, ideal for maintenance-sensitive environments.

Built for Heavy-Duty Use: 1206-K Bearing
In robotics and automation, 1206-K Bearing is a go-to for joint mechanisms due to its self-aligning capability and high dynamic load rating. The metric sizing ensures compatibility with a wide range of European machinery.

What Makes 1206-K Bearing a Preferred Choice?
Consumer appliances like washing machines benefit from 1206-K Bearing’s smooth operation and resistance to misalignment. Its lubricated design ensures quiet performance, perfect for household use.
