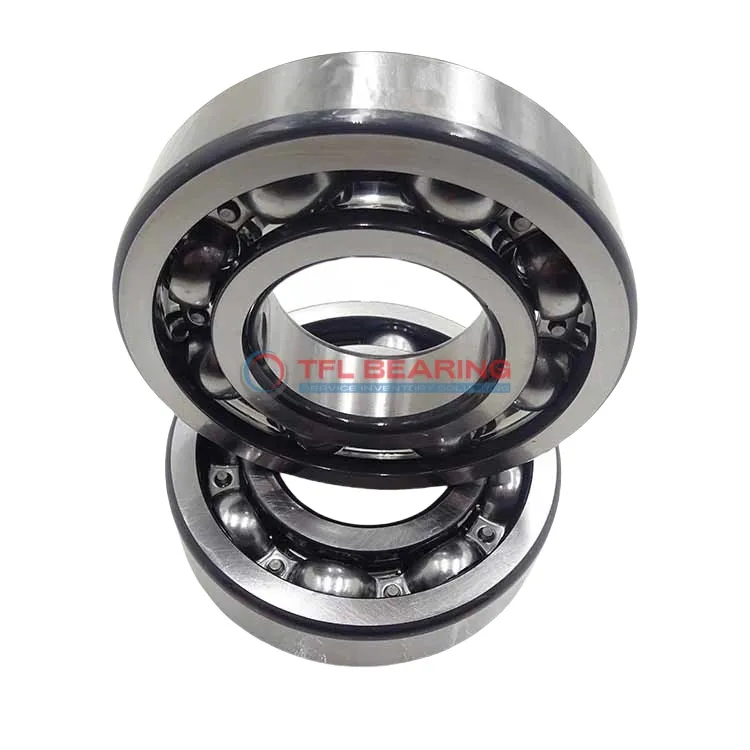

Single Row Deep Groove Ball Bearings 16048 MA

Single Row Deep Groove Ball Bearings 16048 MA

The 16048 MA is a single-row deep groove ball bearing with a 240mm bore and 360mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 45636 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or conveyor systems where radial loads are prevalent.

Weighing 14kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16048 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 37 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 45636 lbf
  • Static Radial Load 57326 lbf
  • Max Speed 3000 rpm
  • Weight 14000 g
  • price（$） 611.496
Single Row Deep Groove Ball Bearings 16048 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16048 MA Bearing

16048 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 45636 lbf.
Its stainless steel cage ensures smooth operation, even at speeds reaching 3,000 rpm.

The P6 tolerance class of 16048 MA Bearing provides precision fit, enhancing performance in demanding applications.
With a temperature range of -30° to 120°C, it performs reliably in various operating conditions.

16048 MA Bearing’s open design simplifies maintenance, reducing downtime and operational costs.
Its durable construction ensures long service life, making it a cost-effective choice for industrial use.

Application

Industrial Uses of 16048 MA Bearing
16048 MA Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its radial load capacity ensures stable operation. The open design allows for easy lubrication, extending service life in demanding conditions.

What Makes 16048 MA Bearing a Preferred Choice?
With its chrome steel construction, 16048 MA Bearing handles high radial loads in applications such as conveyor systems and gearboxes. The P6 tolerance class ensures precise performance, making it suitable for precision equipment.

Built for Heavy-Duty Use: 16048 MA Bearing
16048 MA Bearing excels in construction equipment, where its robust design withstands harsh environments. The stainless steel cage adds durability, reducing wear even under continuous operation.

Automotive vs Aerospace: Applications of 16048 MA Bearing
In automotive systems, 16048 MA Bearing supports components like wheel hubs, offering reliable performance. For aerospace, its high-temperature tolerance makes it useful in auxiliary machinery.

Perfect Fit for Automation: 16048 MA Bearing
16048 MA Bearing is ideal for robotic arms and automated production lines, where smooth rotation is essential. The metric sizing ensures compatibility with a wide range of industrial equipment.
