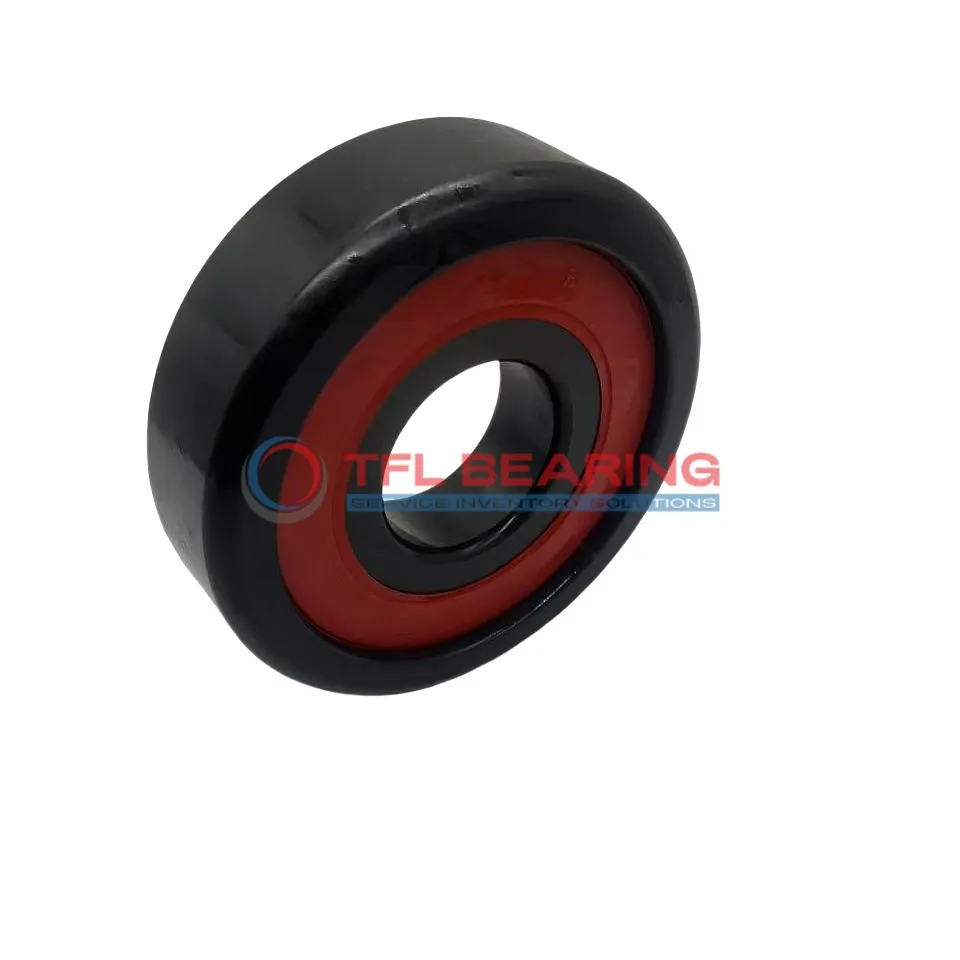

Mast Guide Bearings MG 306 DDL‑11

Mast Guide Bearings MG 306 DDL‑11

The MG 306 DDL-11 is a mast guide bearing with a compact design, measuring 30mm in inner diameter and 75mm in outer diameter. Its 24mm width and 4mm radius make it suitable for tight spaces.

This bearing handles dynamic loads up to 57,100N and static loads up to 67,250N, offering reliable performance under pressure. The sturdy construction ensures durability in demanding conditions.

With an inner ring width of 10mm and outer ring width of 24mm, it provides stable guidance for mast applications. The design balances strength and precision for smooth operation.

Weighing 1.75kg, it’s a robust choice for industrial machinery or construction equipment where precise movement is needed. Its dimensions and load capacity make it versatile for various heavy-duty uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306 DDL‑11
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 75.00 mm
  • Inner Ring Width (b) 10 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 4 mm
  • Dynamic Capacity (Cr.) 57,100 N
  • Static Capacity (Cor.) 67,250 N
  • Weight 1.7463 Kg

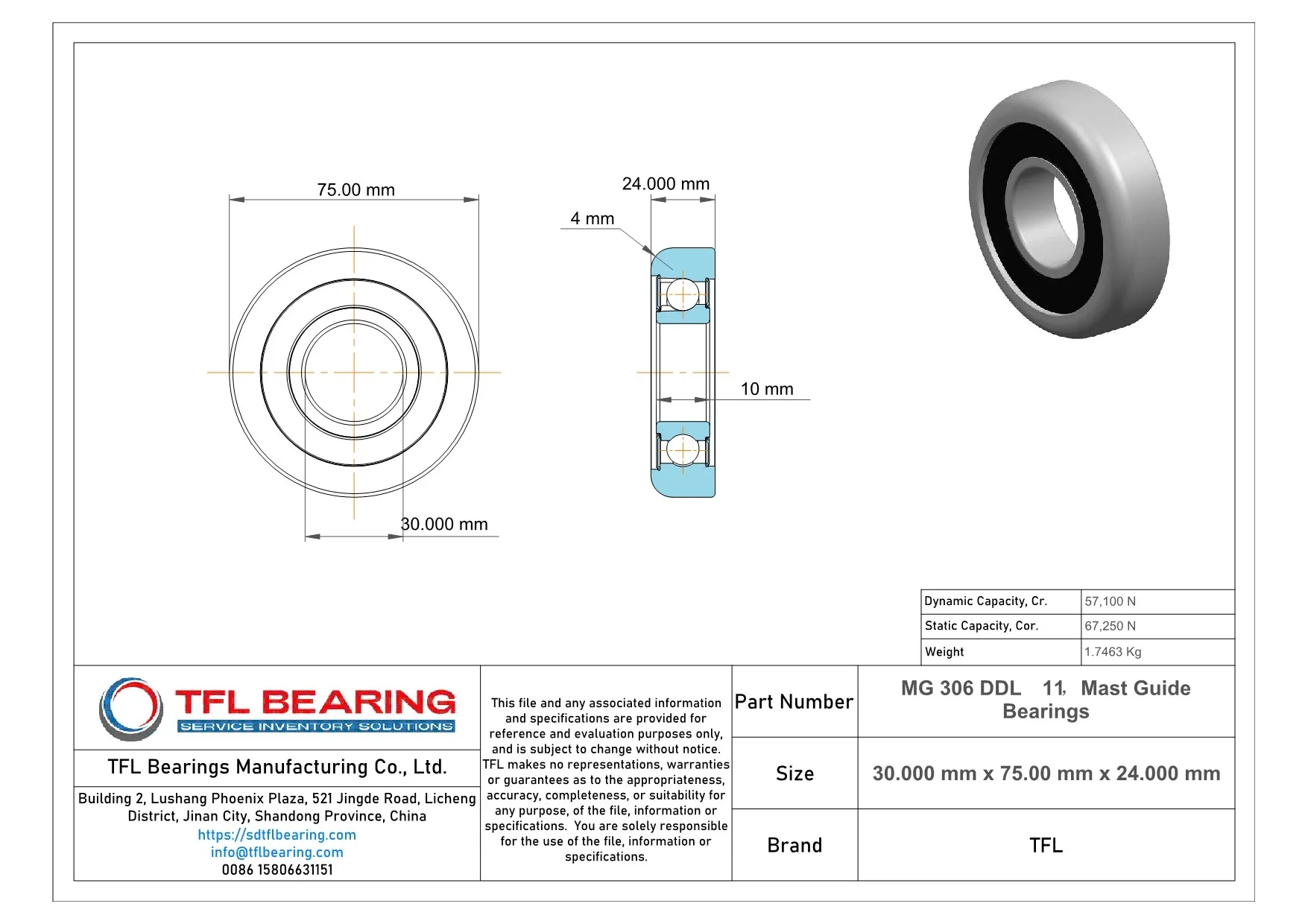

Mast Guide Bearings MG 306 DDL‑11 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 306 DDL‑11 Bearing

MG 306 DDL‑11 Bearing is built with precise dimensions of 30.000 mm x 75.00 mm x 24.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 57,100 N and static capacity of 67,250 N make it suitable for heavy-duty operations.
The bearing’s 4 mm radius design enhances load distribution, reducing stress on components.
With a weight of 1.7463 Kg, it offers a balance between strength and ease of handling.

Application

Industrial Uses of MG 306 DDL‑11 Bearing
MG 306 DDL‑11 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its high dynamic capacity ensures reliable performance under load. The robust design makes it suitable for demanding environments.

Where Is MG 306 DDL‑11 Bearing Used?
You’ll often find MG 306 DDL‑11 Bearing in construction equipment, supporting mast guides and other structural components. Its precise dimensions and durability make it a go-to choice for these applications.

Built for Heavy-Duty Use: MG 306 DDL‑11 Bearing
MG 306 DDL‑11 Bearing excels in applications like industrial conveyors, where its static capacity handles constant stress. The stainless steel construction adds longevity, even in harsh conditions.

Automotive vs Aerospace: Applications of MG 306 DDL‑11 Bearing
In automotive systems, MG 306 DDL‑11 Bearing supports steering columns, while in aerospace, it’s used in landing gear mechanisms. Its versatility and strength make it adaptable across industries.

Perfect Fit for Automation: MG 306 DDL‑11 Bearing
MG 306 DDL‑11 Bearing is ideal for robotic arms and automated assembly lines, where precision and reliability are key. The smooth operation reduces wear, ensuring long-term performance.
