Single Row Deep Groove Ball Bearings 16026/W64

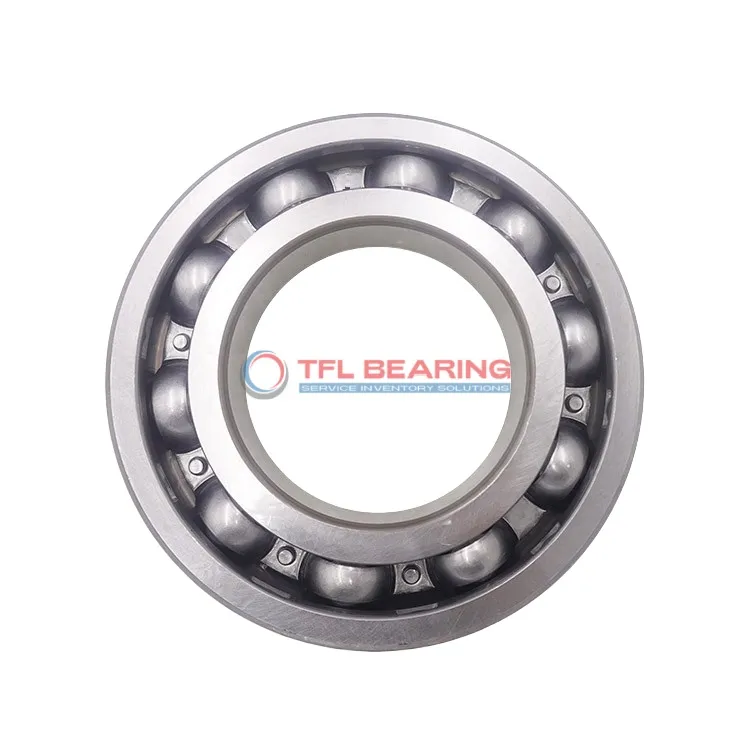

Single Row Deep Groove Ball Bearings 16026/W64

The 16026/W64 is a single row deep groove ball bearing with a 130mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 18704 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or pumps where consistent performance is key.

Weighing 1900g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16026/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 22 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18704 lbf
  • Static Radial Load 18322 lbf
  • Max Speed 3200 rpm
  • Weight 1900 g
Single Row Deep Groove Ball Bearings 16026/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16026/W64 Bearing

16026/W64 Bearing is designed for radial loads, with a dynamic radial load capacity of 18704 lbf.
Its chrome steel construction ensures durability and resistance to wear in various applications.

The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a maximum speed of 3,200 rpm, it offers reliable operation in demanding conditions.

16026/W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its open design allows for easy inspection and maintenance when required.

Application

Common Applications of 16026/W64 Bearing
In industrial settings, 16026/W64 Bearing is commonly used in machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication reduces maintenance needs, making it suitable for continuous operation.

Where Is 16026/W64 Bearing Used?
You’ll often find 16026/W64 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: 16026/W64 Bearing
This bearing handles high radial loads in construction equipment, ensuring smooth operation under tough conditions. The open design allows for easy inspection and re-lubrication, extending its service life.

Automotive vs Industrial: Applications of 16026/W64 Bearing
In automotive systems, 16026/W64 Bearing supports components like alternators, while in industrial gearboxes, it manages radial loads efficiently. Its temperature range makes it adaptable to different working environments.

Perfect Fit for Automation: 16026/W64 Bearing
16026/W64 Bearing works well in robotic arms and conveyor systems, where precision and durability are key. The ABEC 1 tolerance ensures consistent performance in automated processes.
