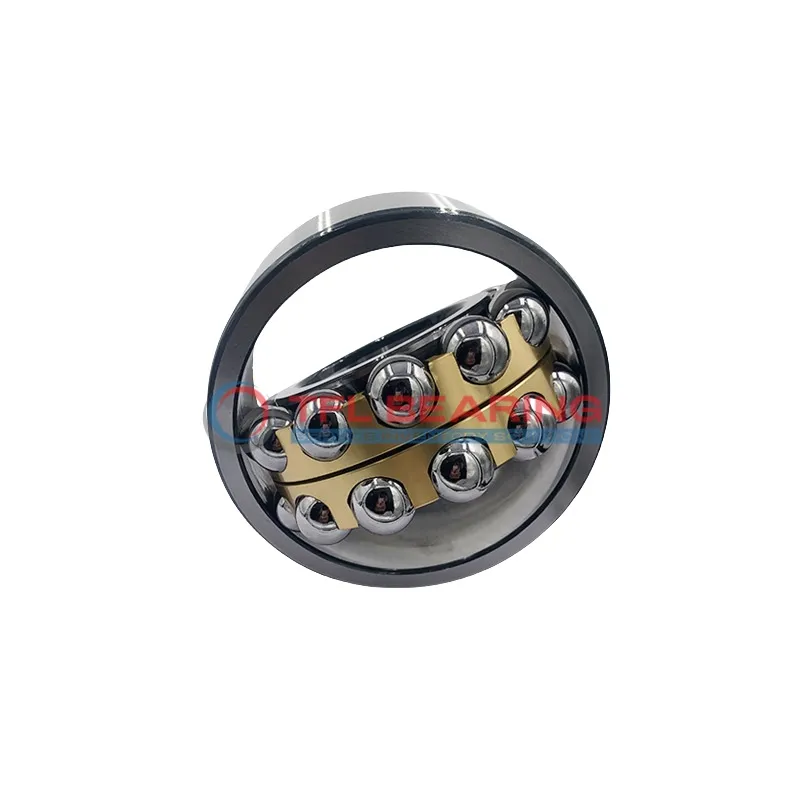

Self Aligning Ball Bearings 1306 M

Self Aligning Ball Bearings 1306 M

The 1306 M is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5062 lbf and operates smoothly at speeds reaching 13000 RPM.

Its double-row design allows for slight misalignment, reducing wear and tear, while the brass cage enhances durability. The open seal type makes lubrication straightforward.

This bearing suits environments with temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.39kg, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1306 M
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 45.1 mm
  • Internal Diameter On Outer Ring 59.1 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 5062 lbf
  • Static Radial Load 1530 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.39 kg
  • Price（$） 58.61
Self Aligning Ball Bearings 1306 M dimension drawing
Download DWG Download PDF

Features

Why Choose 1306 M Bearing for Precision Tasks?

1306 M Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 5062 lbf makes it suitable for high-performance applications.

The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 13,000 rpm, it delivers reliable performance in various conditions.

1306 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy lubrication, ensuring long service life.

Application

Industrial Uses of 1306 M Bearing
1306 M Bearing is commonly used in industrial machinery like conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support, making it suitable for continuous operation.

Where Is 1306 M Bearing Used?
In automotive applications, 1306 M Bearing fits well in gearboxes and pumps, handling radial loads efficiently. Its brass cage ensures smooth rotation even under varying speeds and temperatures.

Perfect Fit for Automation: 1306 M Bearing
For robotic arms and automated assembly lines, 1306 M Bearing offers precise movement with minimal friction. The chrome steel construction enhances durability in high-cycle environments.

Medical vs Industrial: Where 1306 M Bearing Excels
While 1306 M Bearing performs reliably in industrial fans, it also meets the precision needs of medical imaging devices. Its lubricated design ensures quiet operation, critical in sensitive settings.

Light-Duty vs Heavy-Duty: Best Uses for 1306 M Bearing
1306 M Bearing adapts to both light-duty appliances like printers and heavy-duty machinery like compressors. The metric sizing and open seal simplify integration across diverse equipment.
