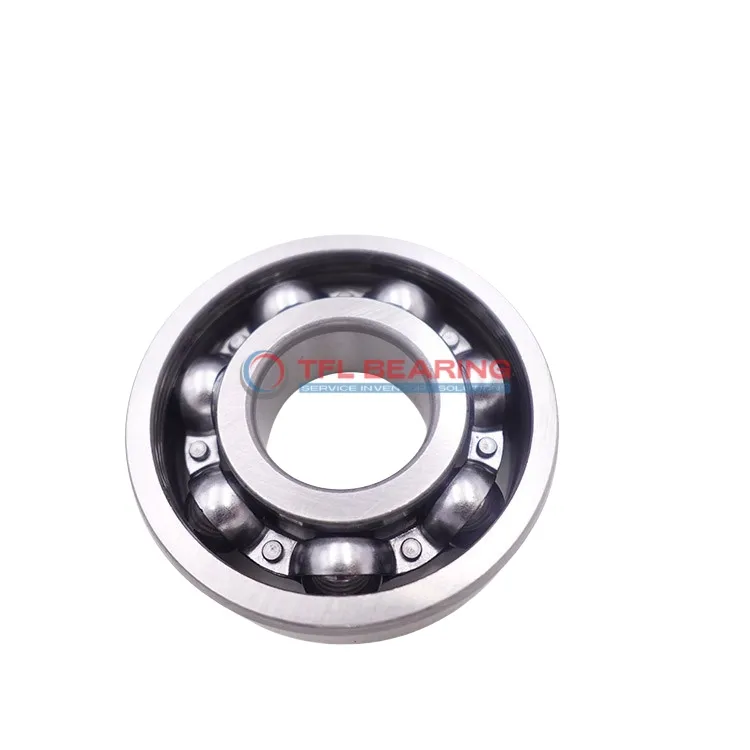

Single Row Deep Groove Ball Bearings 16017/W64

Single Row Deep Groove Ball Bearings 16017/W64

The 16017/W64 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7329 lbf and operates smoothly at speeds up to 4200 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 570g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16017/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 14 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7329 lbf
  • Static Radial Load 7104 lbf
  • Max Speed 4200 rpm
  • Weight 570 g
Single Row Deep Groove Ball Bearings 16017/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16017/W64 Bearing

16017/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7329 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces friction, enhancing smooth operation and extending service life.
With a maximum speed of 4,200 rpm, it balances durability and efficiency for consistent use.

16017/W64 Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance, making it a practical choice for industrial needs.

Application

Industrial Uses of 16017/W64 Bearing
16017/W64 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication helps maintain smooth operation even in continuous use.

Where Is 16017/W64 Bearing Used?
You’ll often find 16017/W64 Bearing in automotive applications like alternators and fans, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 16017/W64 Bearing
16017/W64 Bearing handles high radial loads in construction equipment, such as conveyor belts and gearboxes. The open design allows for easy inspection and maintenance, ideal for tough environments.

Medical vs Industrial: Where 16017/W64 Bearing Excels
In medical devices, 16017/W64 Bearing offers precision in low-speed applications like lab equipment. Meanwhile, its robustness shines in industrial settings, such as machinery requiring consistent radial support.

Perfect Fit for Automation: 16017/W64 Bearing
16017/W64 Bearing works well in automated systems, including robotic arms and assembly lines. The ABEC 1 tolerance ensures decent precision without compromising on durability.
