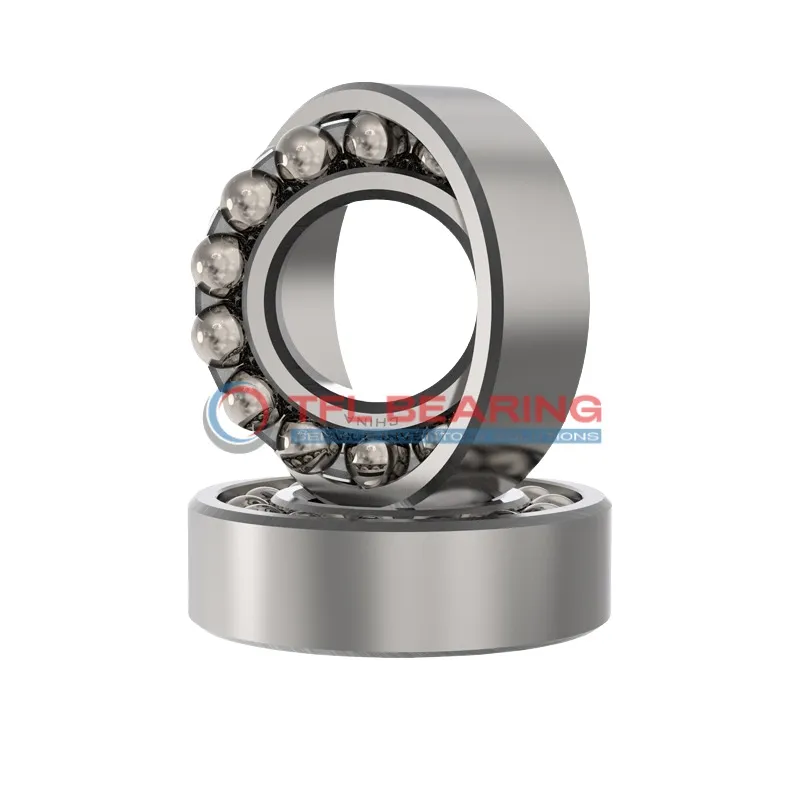

Self Aligning Ball Bearings 1314 C/3

Brand: TFL Bearing Interchangeable: SKF 1314 C/3 70 mm × 150 mm × 35 mm Metric Open
Part number: 1314 C/3
Self Aligning Ball Bearings 1314 C/3
In Stock
US$153.41 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.018mm to 0
Width35 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring97.5 mm
Internal Diameter On Outer Ring126.8 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load16,672 lbf
Static Radial Load6,188 lbf
Temperature Range-30° to 110 °C
Max Speed6,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1314 C/3 is a self-aligning ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16672 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design allows for slight misalignment, reducing wear and tear. The open seal type makes lubrication straightforward, while the stainless steel cage ensures durability.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for machinery with radial loads, such as conveyor systems or agricultural equipment.

Weighing 3kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 110°C.

Features

Why Choose 1314 C/3 Bearing for Precision Tasks?

1314 C/3 Bearing features a double-row design, providing excellent radial load capacity up to 16672 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.
The stainless steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 6,000 rpm, it offers reliable performance for precision tasks.

How Is 1314 C/3 Bearing Engineered for Reliability?

1314 C/3 Bearing is built with chrome steel components, offering strong resistance to wear and tear.
Its double-row construction distributes loads evenly, enhancing stability and longevity.
The open seal design allows for easy lubrication, ensuring consistent performance.
With a static radial load capacity of 6188 lbf, it handles demanding conditions with ease.

Built for Reliability: 1314 C/3 Bearing

1314 C/3 Bearing’s cylindrical bore design ensures a secure fit, reducing installation errors.
The chrome steel material resists corrosion, making it suitable for harsh environments.
Its dynamic radial load capacity of 16672 lbf ensures dependable operation under heavy loads.
The bearing’s temperature range of -30° to 110°C allows for versatile use in various climates.

Steel vs Ceramic Bearings: Strengths of 1314 C/3 Bearing

1314 C/3 Bearing uses chrome steel for both rings and balls, providing a balance of strength and affordability.
The stainless steel cage enhances durability, making it a practical choice for industrial applications.
Its double-row design offers superior load distribution compared to single-row bearings.
With a weight of 3 kg, it remains manageable while delivering robust performance.

Application

Industrial Uses of 1314 C/3 Bearing
1314 C/3 Bearing is commonly used in heavy machinery like conveyor systems, where its double-row design helps manage misalignment and radial loads. The open seal allows for easy lubrication, extending service life in dusty environments.

What Makes 1314 C/3 Bearing a Preferred Choice?
In automotive applications, 1314 C/3 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 1314 C/3 Bearing
For industrial fans and blowers, 1314 C/3 Bearing offers reliable performance with its high dynamic radial load capacity. The stainless steel cage adds durability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 1314 C/3 Bearing
While 1314 C/3 Bearing excels in automotive systems like gearboxes, it’s also found in aerospace equipment where precision and reliability are key. The wide temperature range ensures performance in diverse conditions.
