Single Row Cylindrical Roller Thrust Bearings assembly K 81232 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81232 M

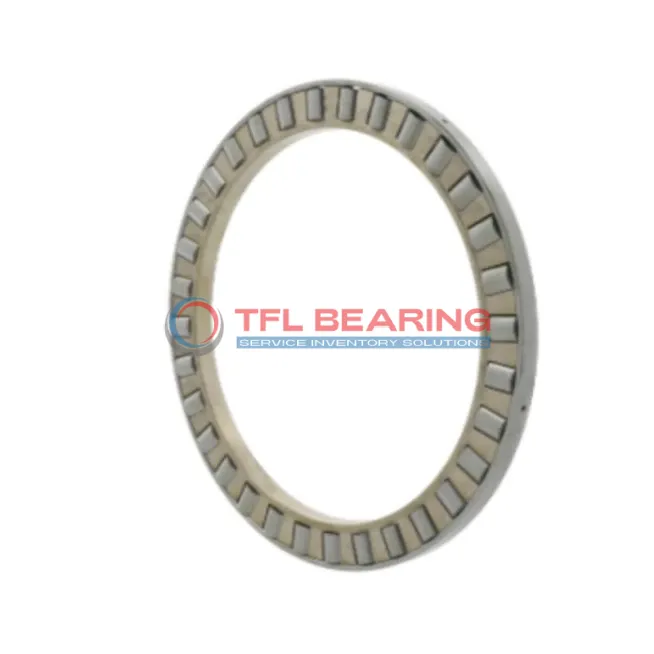

The K 81232 M is a single-row cylindrical roller thrust bearing with a 160mm bore and 225mm outer diameter, crafted from robust chrome steel. It handles heavy thrust loads up to 108000 lbf and operates smoothly at speeds up to 1200 RPM.

Its machined brass cage ensures durability and reduces friction, while the precise tolerances guarantee reliable performance. The bearing works in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Ideal for heavy machinery or industrial equipment where high thrust loads are common.

Weighing 3.36kg, it’s built to last while meeting RoHS and REACH standards for safety and compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81232 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 160 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 21 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 171 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 219 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 108000 lbf
  • Static Radial Load 450000 lbf
  • Max Speed 1200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.36 kg
  • Shaft Washer WS 81232
  • Housing Washer GS 81232

Features

Performance Features of K 81232 M Bearing

K 81232 M Bearing is built with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 108,000 lbf, making it suitable for demanding industrial applications.

The machined brass cage ensures smooth operation and reduces wear, even at high speeds.
With a maximum speed of 1,200 rpm, it balances performance and durability in various conditions.

K 81232 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise dimensions (160 mm x 225 mm x 21 mm) ensure compatibility with standard machinery setups.

The bearing’s robust design minimises maintenance needs, saving time and costs.
Its interchangeable nature with SKF bearings provides flexibility for replacements and upgrades.

Application

Industrial Uses of K 81232 M Bearing
K 81232 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is K 81232 M Bearing Used?
In automotive applications, K 81232 M Bearing supports components like steering systems and transmissions, providing reliable performance under heavy loads. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81232 M Bearing
For industrial automation, K 81232 M Bearing is ideal for robotic arms and conveyor systems, where precision and durability are key. The chrome steel rollers offer excellent wear resistance, extending the bearing’s lifespan.

Automotive vs Aerospace: Applications of K 81232 M Bearing
In automotive settings, K 81232 M Bearing excels in transmissions and differentials, while in aerospace, it’s used in landing gear systems. Its high dynamic load capacity makes it suitable for both industries.

Perfect Fit for Automation: K 81232 M Bearing
K 81232 M Bearing is a great choice for automated production lines, where its robust design ensures consistent performance. The brass cage reduces friction, making it ideal for high-speed operations.
