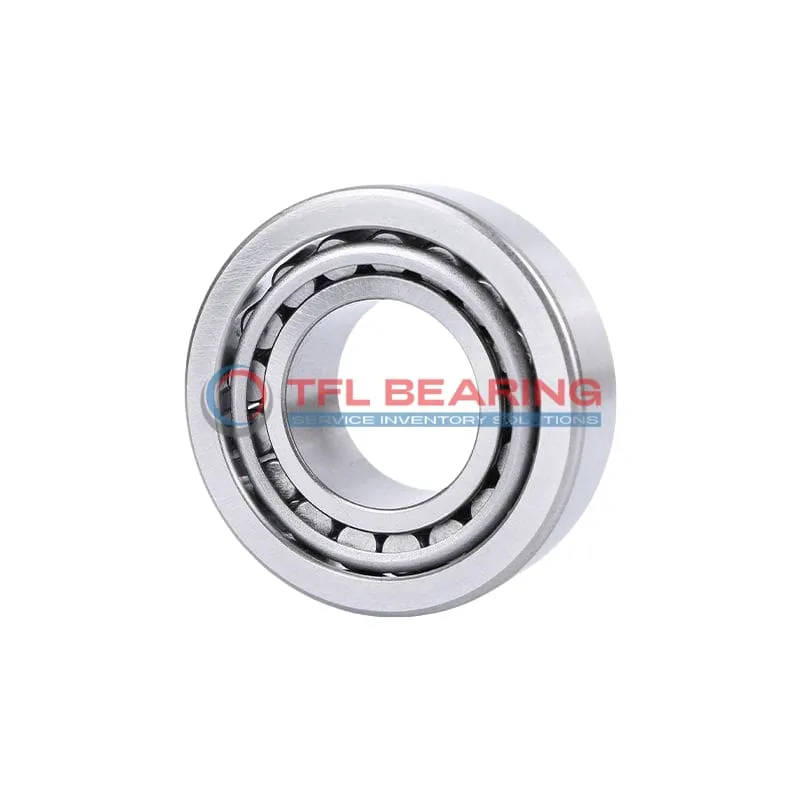

TS (Single Row Tapered Roller Bearings) (Imperial) 540-533A

TS (Single Row Tapered Roller Bearings) (Imperial) 540-533A

The 540-533A is a single-row tapered roller bearing with a 2.0625″ bore and 4.0625″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 540-533A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0625" x 4.0625" x 1.5001"
  • Bore Dia 2.0625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.36"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 540
  • Cup Part Number 533A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3 lb

Features

How Does 540-533A Bearing Handle Combined Loads?

540-533A Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 38,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Core Advantages of 540-533A Bearing

540-533A Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability and resistance to wear in demanding environments.
Its standard radial clearance ensures smooth operation, while the ABEC-1 rating guarantees consistent performance.
This bearing is interchangeable with Timken models, offering flexibility in replacements.

Why Choose 540-533A Bearing for Precision Tasks?

540-533A Bearing’s precise cone and cup dimensions ensure accurate alignment in machinery.
The effective center location of -0.48″ enhances stability during operation.
With a dynamic thrust rating of 5,090 lbf, it handles axial loads effectively.
Its open design allows for easy lubrication, maintaining performance over time.

Engineered for Reliability: 540-533A Bearing

540-533A Bearing’s tapered roller design distributes loads evenly, reducing stress on components.
The chrome steel rollers and rings provide high resistance to wear and fatigue.
Its standard radial clearance options (C3/C4/C5) allow for tailored performance in different applications.
Weighing just 3 lb, it balances strength and ease of handling.

Application

Key Fields for 540-533A Bearing
In industrial settings, 540-533A Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 540-533A Bearing Used?
You’ll often find 540-533A Bearing in automotive applications, particularly in wheel hubs and differential systems. Its imperial sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 540-533A Bearing
This bearing excels in construction equipment, supporting axial and radial loads in excavators and cranes. The steel cage adds extra strength, making it suitable for rough conditions.

Automotive vs Aerospace: Applications of 540-533A Bearing
While 540-533A Bearing is popular in trucks and buses for its load capacity, it’s also found in some aircraft landing gear components. The temperature range ensures performance in varied climates.

Perfect Fit for Automation: 540-533A Bearing
In robotic arms and assembly lines, 540-533A Bearing provides smooth rotation under combined loads. Its standard radial clearance allows for precise movement without excessive friction.
