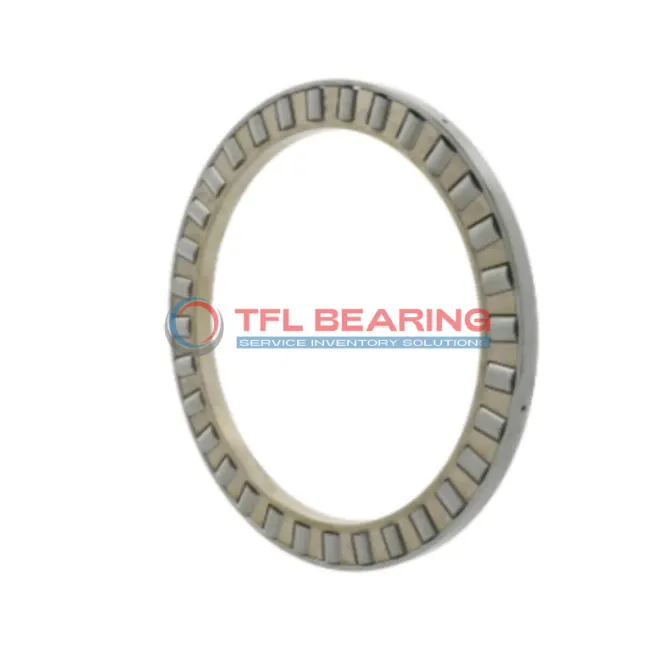

Single Row Cylindrical Roller Thrust Bearings assembly K 81230 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81230 M

The K 81230 M is a single-row cylindrical roller thrust bearing with a 150mm bore and 215mm outer diameter, crafted from robust chrome steel. It handles heavy thrust loads up to 104625 lbf and operates smoothly at speeds up to 1300 RPM.

Its machined brass cage ensures durability and reduces friction, while the precise tolerances provide reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gearboxes where high thrust loads are common.

Weighing 2.81kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81230 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 150 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 21 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 162 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 210 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 104625 lbf
  • Static Radial Load 427500 lbf
  • Max Speed 1300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.81 kg
  • Shaft Washer WS 81230
  • Housing Washer GS 81230

Features

Why Choose K 81230 M Bearing for Precision Tasks?

K 81230 M Bearing features a single row cylindrical roller design, optimised for high thrust load applications.
Its chrome steel rollers and machined brass cage ensure smooth operation and durability.

With a dynamic radial load capacity of 104625 lbf, K 81230 M Bearing handles demanding conditions effortlessly.
The precise tolerances and robust construction enhance reliability in industrial settings.

K 81230 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its design minimises friction, making it suitable for high-speed applications up to 1300 rpm.

The bearing’s dimensions (150 mm x 215 mm x 21 mm) provide a compact yet powerful solution.
Easy to install and maintain, K 81230 M Bearing reduces downtime and operational costs.

Application

Industrial Uses of K 81230 M Bearing
K 81230 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

Where Is K 81230 M Bearing Used?
In automotive applications, K 81230 M Bearing supports components like clutch assemblies and transmissions, thanks to its robust chrome steel rollers. Its metric sizing makes it a reliable choice for European and Asian vehicle models.

Built for Heavy-Duty Use: K 81230 M Bearing
For industrial automation, K 81230 M Bearing excels in robotic arms and conveyor systems, where precision and durability are key. The brass cage reduces friction, extending the bearing’s lifespan in continuous operation.

Automotive vs Aerospace: Applications of K 81230 M Bearing
While K 81230 M Bearing is ideal for automotive transmissions, it also finds use in aerospace landing gear systems. Its high dynamic load capacity ensures performance in both demanding environments.

Key Fields for K 81230 M Bearing
In medical imaging equipment, K 81230 M Bearing provides reliable support for rotating components. The chrome steel construction and brass cage offer a balance of strength and smooth operation.
