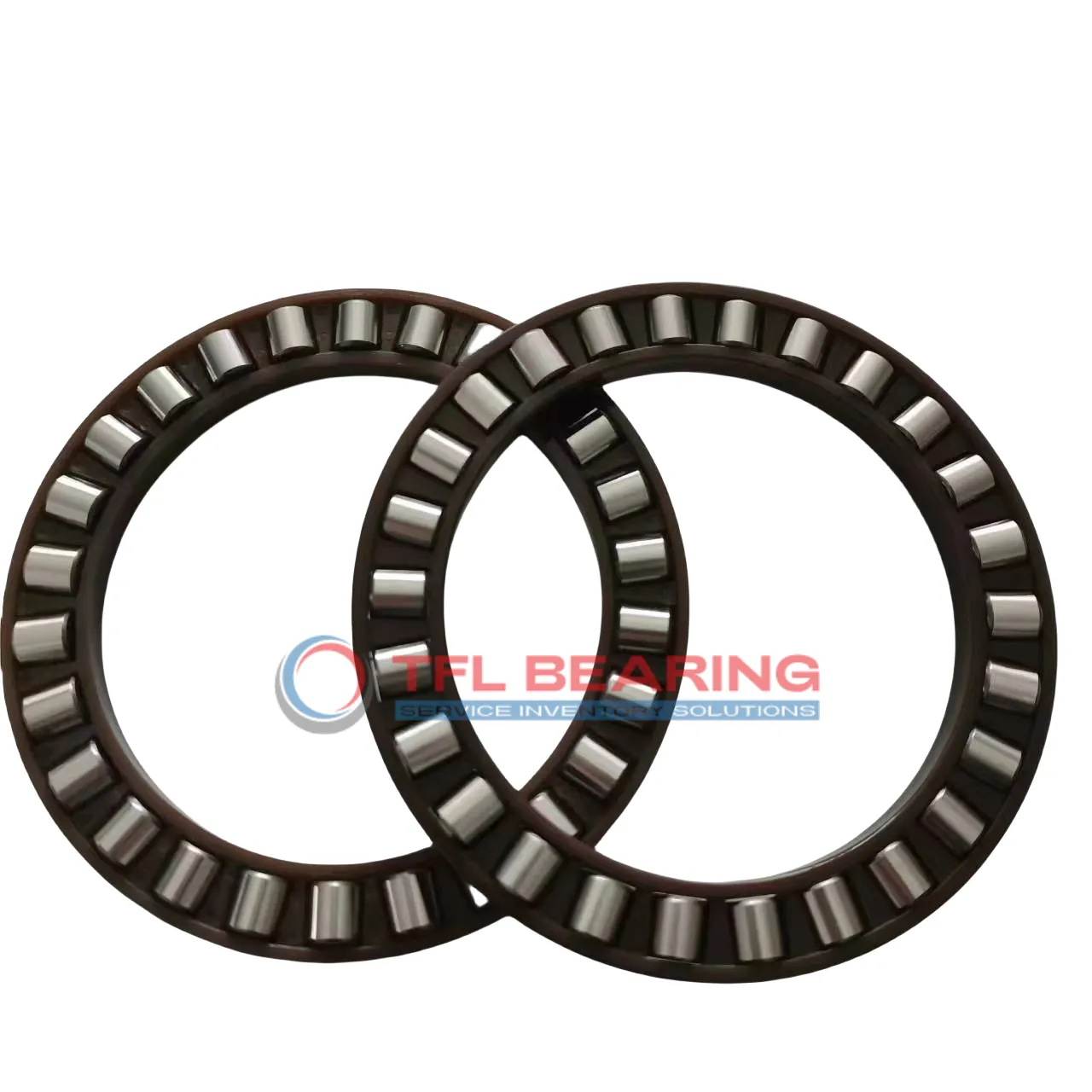

Single Row Cylindrical Roller Thrust Bearings assembly K 81213 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81213 TN

The K 81213 TN is a single-row cylindrical roller thrust bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31500 lbf and operates smoothly at speeds up to 2600 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction, while the cylindrical rollers provide even load distribution. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or gear systems where high thrust loads are common.

Weighing just 0.19kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81213 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 65 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.38mm to -0.92mm
  • Diameter Roller 11 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 69 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 96 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 110250 lbf
  • Max Speed 2600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.19 kg
  • Shaft Washer WS 81213
  • Housing Washer GS 81213

Features

Performance Features of K 81213 TN Bearing

K 81213 TN Bearing is designed with a single row of cylindrical rollers, ideal for handling high thrust loads.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation.

The bearing can handle dynamic radial loads up to 31,500 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 2,600 rpm, it balances performance and reliability in demanding conditions.

K 81213 TN Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise dimensions and tolerances ensure easy installation and long service life.

Application

Common Applications of K 81213 TN Bearing
K 81213 TN Bearing is widely used in industrial machinery, especially in equipment like hydraulic pumps and gearboxes where high thrust loads are common. Its cylindrical roller design ensures efficient load distribution, reducing wear over time.

In automotive applications, K 81213 TN Bearing is ideal for transmissions and differential systems, handling heavy axial forces with ease. The glass fibre reinforced PA66 cage adds durability, making it suitable for long-term use.

For automation systems, K 81213 TN Bearing provides reliable performance in robotic arms and conveyor belts. Its metric sizing and compatibility with SKF models make it a versatile choice for various setups.

In heavy machinery, K 81213 TN Bearing excels in applications like presses and compressors, where its high static radial load capacity ensures stability. The chrome steel rollers further enhance its resistance to heavy loads.
