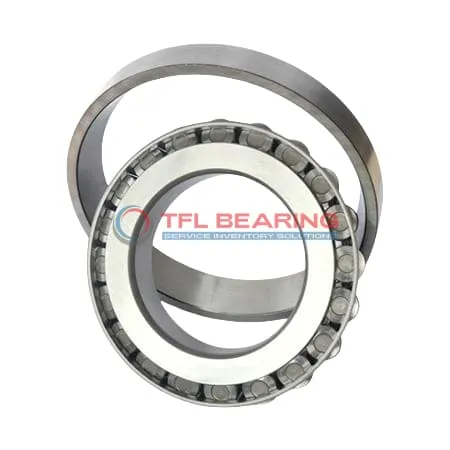

TS (Single Row Tapered Roller Bearings) (Imperial) 34274-34500

TS (Single Row Tapered Roller Bearings) (Imperial) 34274-34500

The 34274-34500 is a single-row tapered roller bearing with a 2.754″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 23000 lbf radially and 4600 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive uses where combined loads are common.

Weighing 2.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 34274-34500
  • Brand TFL
  • Interchangeable Timken
  • Size 2.754" x 5" x 1.0625"
  • Bore Dia 2.754"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.906"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7812"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.67"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location 0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 34274
  • Cup Part Number 34500
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 34000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23000 lbf
  • Static Radial Load 30600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

Performance Features of 34274-34500 Bearing

34274-34500 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 23,000 lbf, making it suitable for heavy-duty applications.

The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

34274-34500 Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Common Applications of 34274-34500 Bearing
The 34274-34500 Bearing is widely used in industrial equipment like heavy-duty gearboxes and conveyor systems, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 34274-34500 Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for Timken equivalents in older machinery.

For automation systems, 34274-34500 Bearing’s open design allows easy lubrication, extending service life in robotic arms and assembly lines. The steel cage adds stability during high-speed operations.

Medical equipment benefits from 34274-34500 Bearing’s precision, particularly in imaging devices requiring smooth rotation. Its standard radial clearance ensures consistent performance over time.

Household appliances like washing machines often use 34274-34500 Bearing for its balance of strength and quiet operation. The ABEC-1 rating meets general precision needs without unnecessary cost.
